NUSCAN 4400T

Auto Scanning Automatically scan any barcode as you go without the need to press a trigger with the 2D cross laser aimer.	Fixed Mount Position Perfect for Medical equipment, airports, and restaurants that require a fixed position to be able to scan quickly and efficiently.	2D Scanning Engine The 2D scanning engine offers the decoding capability for 2D barcodes like PDF417, Data Matrix, QR Code, and MicroQR as well as common 1D barcodes.
Superior Scanning Performance Equipped with its CMOS sensor the device has a motion tolerance of 24 inches per second, offering fast and accurate scanning results.	Long Scanning Range Equipped with its CMOS sensor the device has a scanning range up to 12 inches offering fast and accurate scanning results.

Specifications

Image: 1280 x 800 CMOS
Light Source: 650 ± 10 nm visible red LED & White
Depth of Field: 0-12 inches (@20mil EAN-13, PC 100%)
Scan Angle: Roll: ±360°, Pitch: ±70°, Yaw: ±70°
Motion Tolerance: 24 inches per second (IPS)
Minimum Bar Width (1D): 90mm-240mm, 5mm*5mm, Code 39
Minimum Bar Width (2D): 30mm-135mm, 14mm*7mm, PDF417
Print Contrast: PCS 20% EAN13 @13mil
Communication: USB
Indicators (LED): Red
Alert Operation: Programmable Beeper Tone
Input Voltage: Operating Current: 3.3 ± 5% VDC, 132 ± 13mA (at maximum)
EMC: FCC, CE, RoHS
Dimensions:2.16 (L) x 1.96 (W) x 0.94 (H) in. (55 x 50 x 24 mm)
Weight: 2.96 oz. (44 grams, excluding cable)
Cable: 3.4″ (1 meter)
Operating Temperature: -10°C to 60°C (-14°F to 140°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 5% to 95% (non-condensing)
Light Levels: Max 100,000 lux

Supported Symbologies
1D: EAN-8, EAN-13, EAN-13 2 add-on, EAN-13 5add-on, ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 32
Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5
2D: PDF417, MicroQR, Data Matrix, QR

System Requirements:

• Windows^®2000 / XP / Vista / 7 / 8 / 10
• Mac^® OS X
• Interface: USB

Includes:

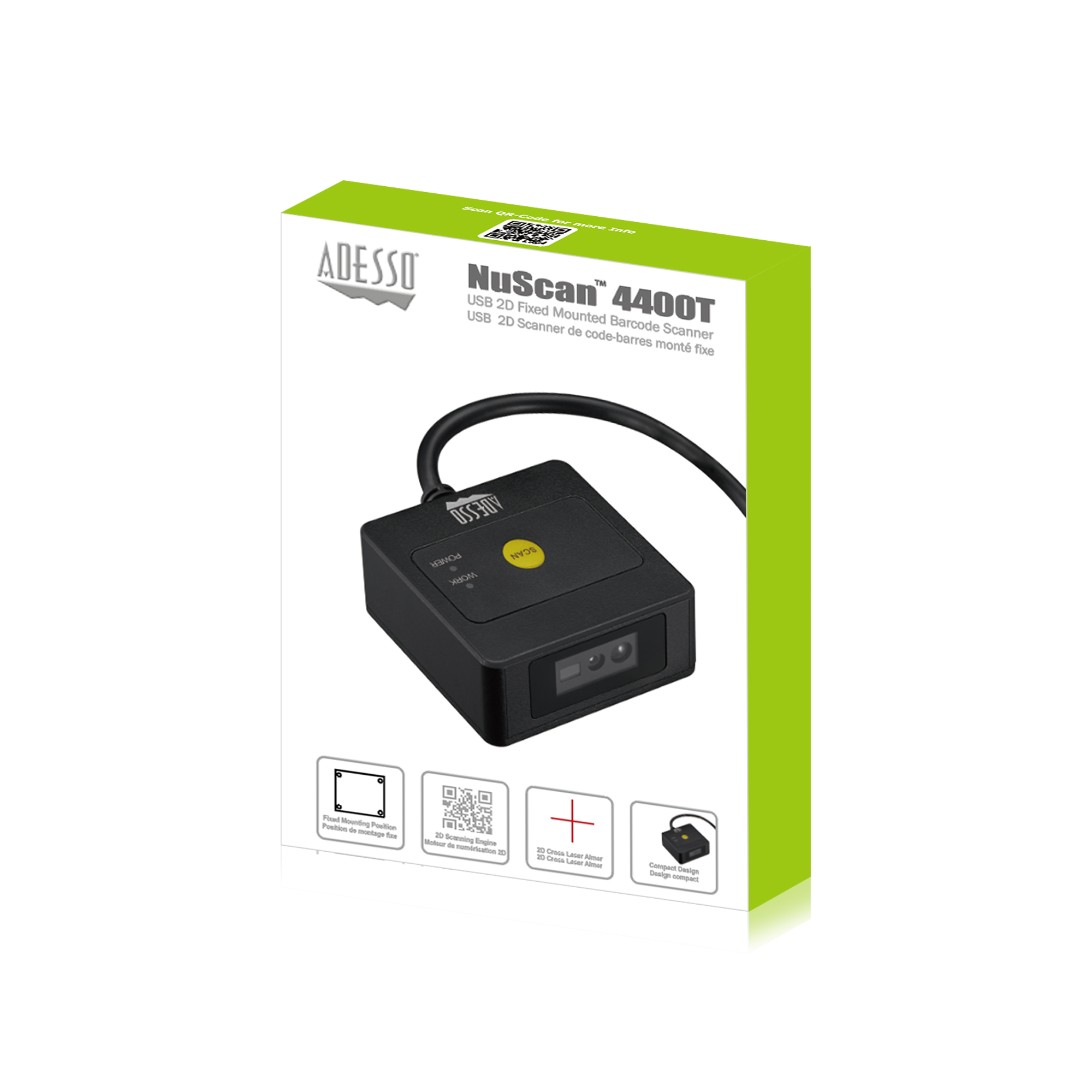

• Adesso NuScan 4400T – USB 2D Fixed Mounted Barcode Scanner
• Quick Start Guide
