NUSCAN 3500TB
$199.99

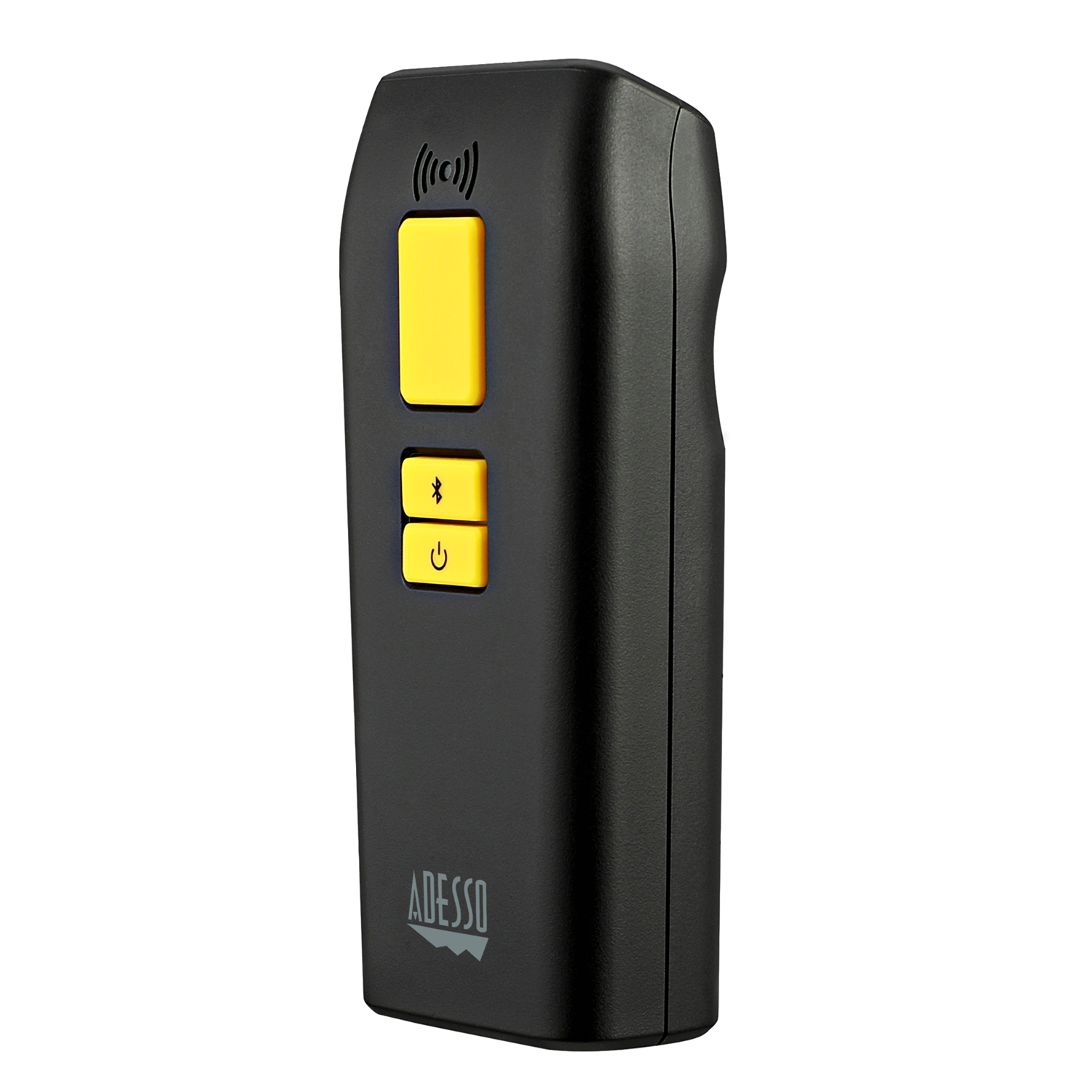

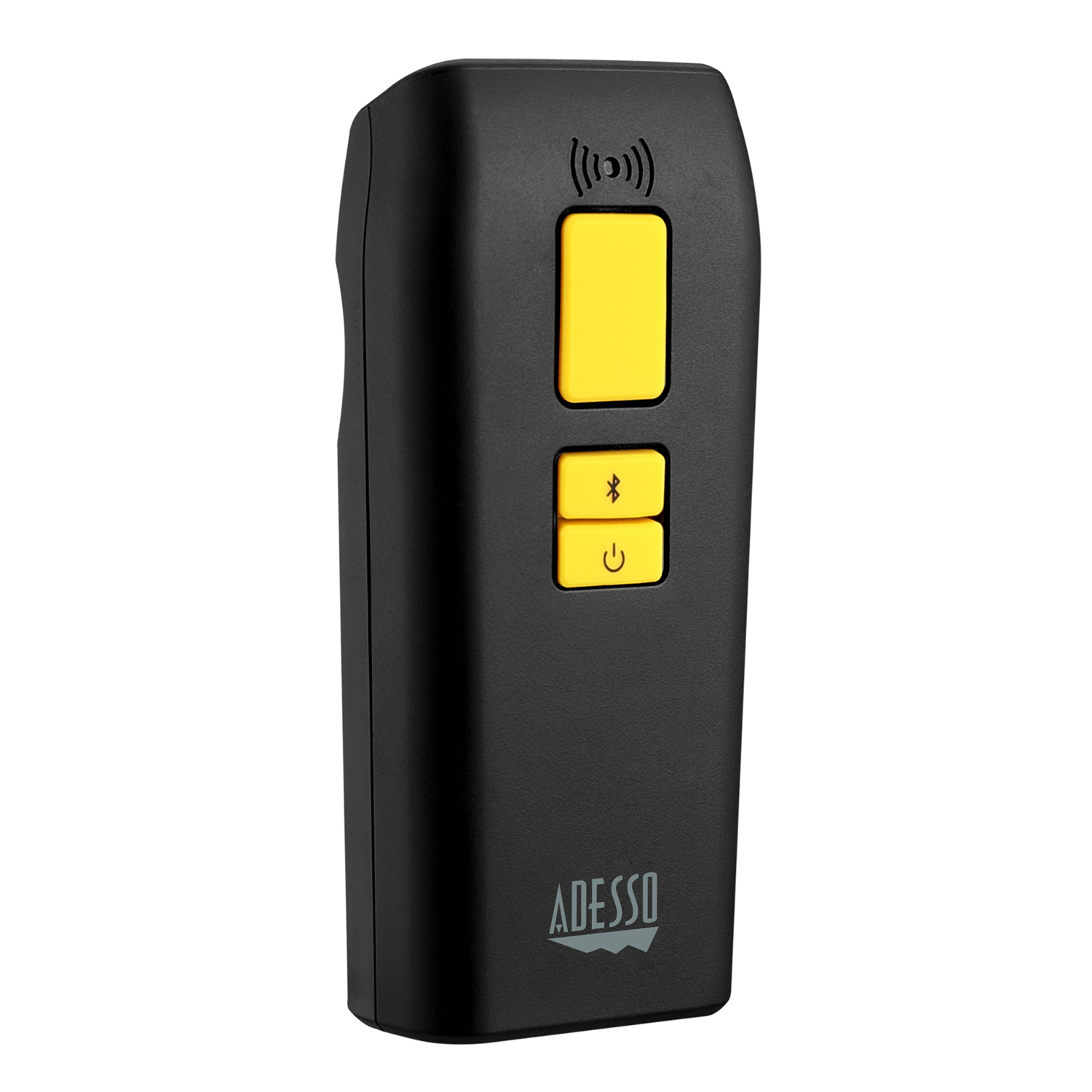

Bluetooth Medical Grade Portable 2D Barcode Scanner
Big things do come in small packages. Meet the Adesso NuScan 3500CB. This pocket sized barcode scanner weighs at just less than 3 ounces and connects to your mobile iOS/Android devices wirelessly through Bluetooth®. With its CCD sensor, the NuScan 3500CB is capable of decoding majority of the 1D barcodes that are used in various industries such as UPCs, EANs, Code 39, Code 128, Codabars, and much more. The antimicrobial substances used to manufacture the scanner help to keep away germs and viruses and rated at IP 66, this scanner is also waterproof, oilproof, and dustproof, making it a great scanning choice for industrial environments. Designed with durability in mind, the scanner has a rugged design that can withstand drops up to 10 feet. To increase its longevity, the scanner has a magnetic detachable cable where it snaps onto the scanner with ease to reduce damage to the connector port that are often caused by day-to-day connecting. Last but not least, the scanner is capable of scanning up to 300 scans per second and scanning barcodes up to 20 inches away, offering fast and accurate scanning results.
 |
||
 |
 |
 |
| Antimicrobial The Nuscan 3500TB is made with antimicrobial material which prevents the growth of harmful bacteria and protects against the buildup germs between washings. |
Waterproof IP66 Rated. Sealed with a silicone plastic material, this scanner is 100% waterproof and can be cleaned with soap and water or other liquids cleaners. Ranked as a IPX66 Waterproof Standard, this device can withstand being submerged in water for up to 30 min up to a 3 ft depth. |

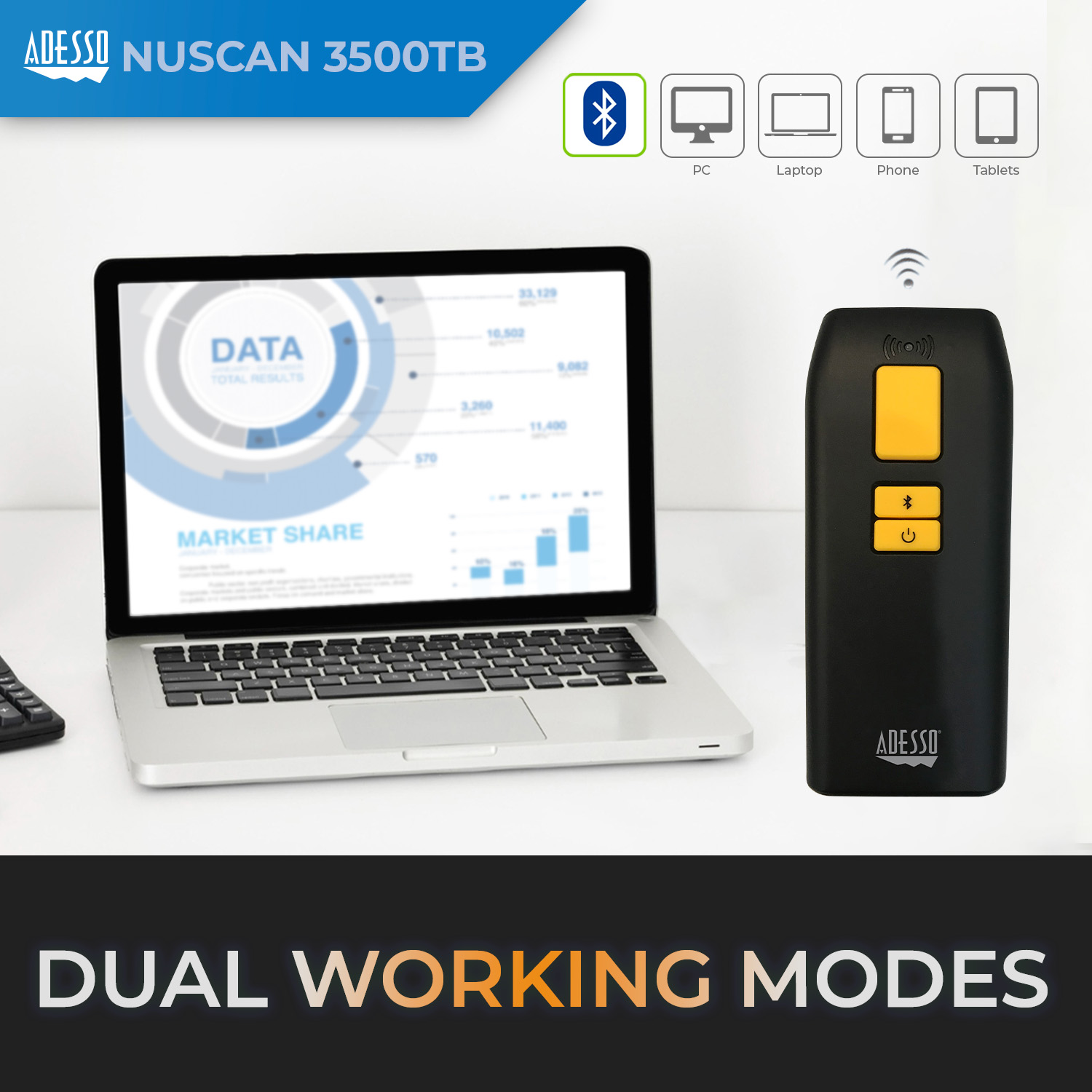

Bluetooth® Wireless Technology Connect the scanner to your iOS/Android device with ease and enjoy scanning barcodes wirelessly up to 30 feet away. |
 |
 |
 |

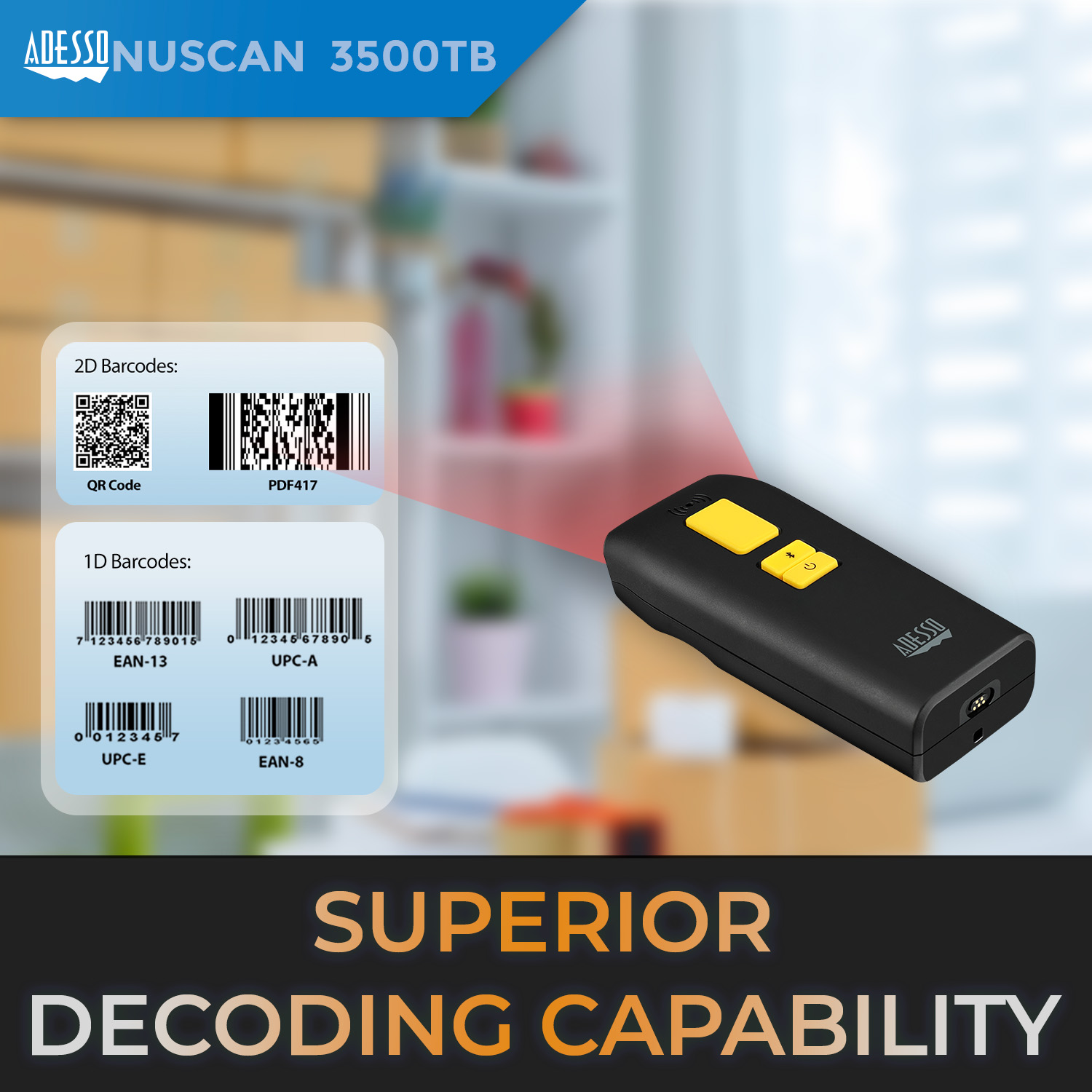

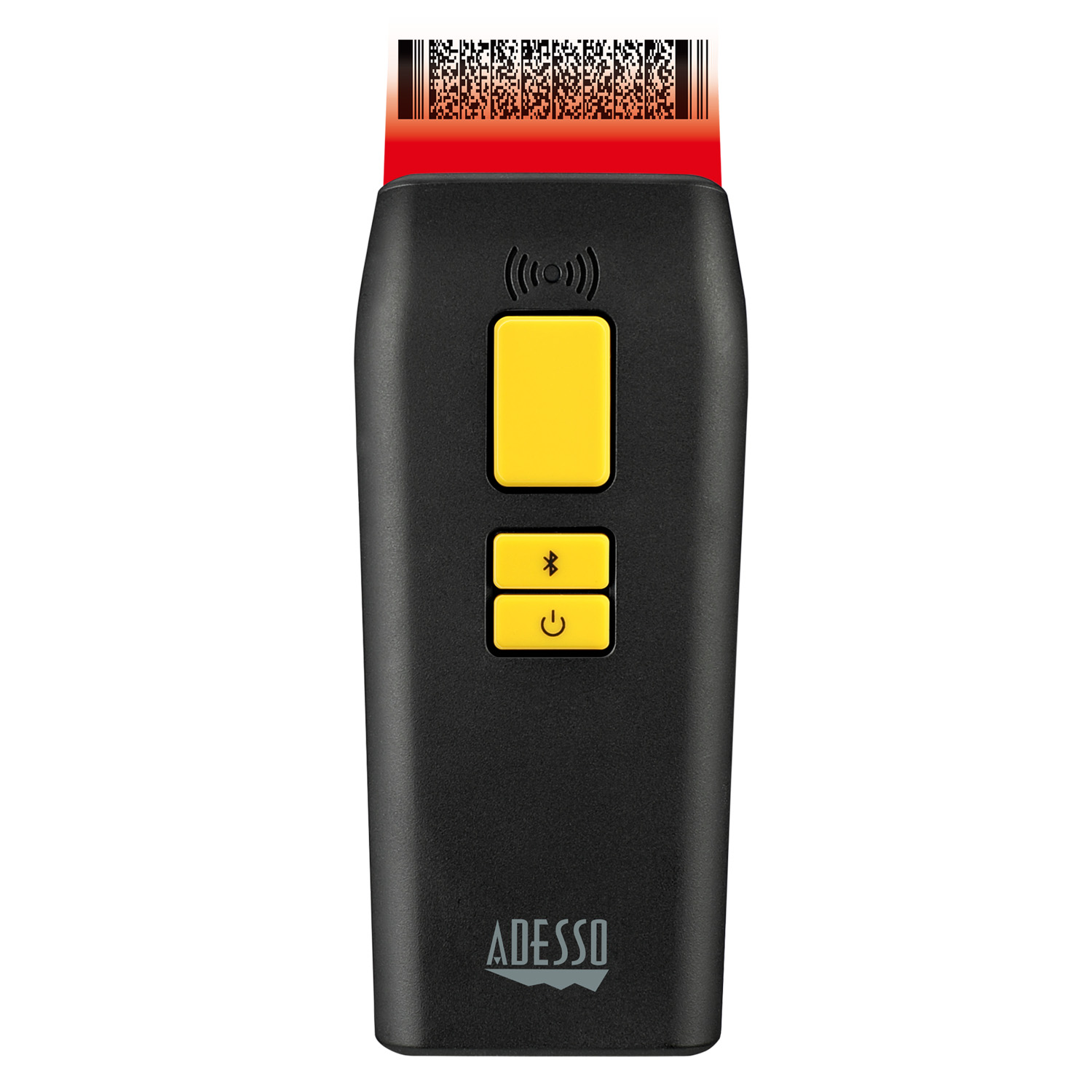

| Superior Decoding with 2D Scanning Engine The 2D scanning engine offers decoding capability for 2D barcodes like PDF417, Data Matrix, QR Code, MicroQR as well as common 1D barcodes. |
Portable Pocket Size Design Weighing at less than 3 ounces, the NuScan 3500TB is extremely light weight and portable, making it easily the perfect scanning solution wherever you go. |

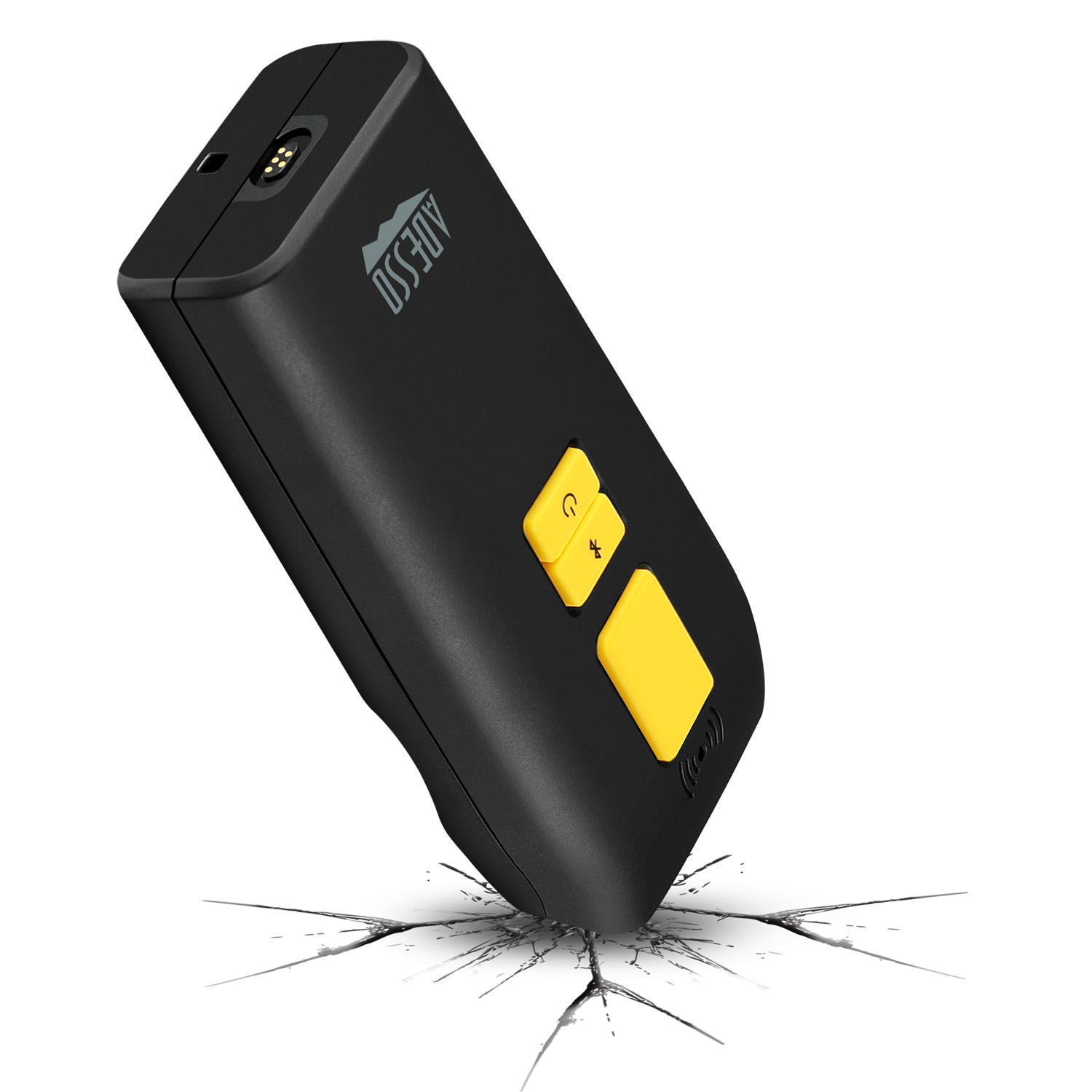

Drop Protection With its drop protection and rugged design, the NuScan 3500TB can withstand accidental drops of up to 7 feet. |
 |
 |
 |

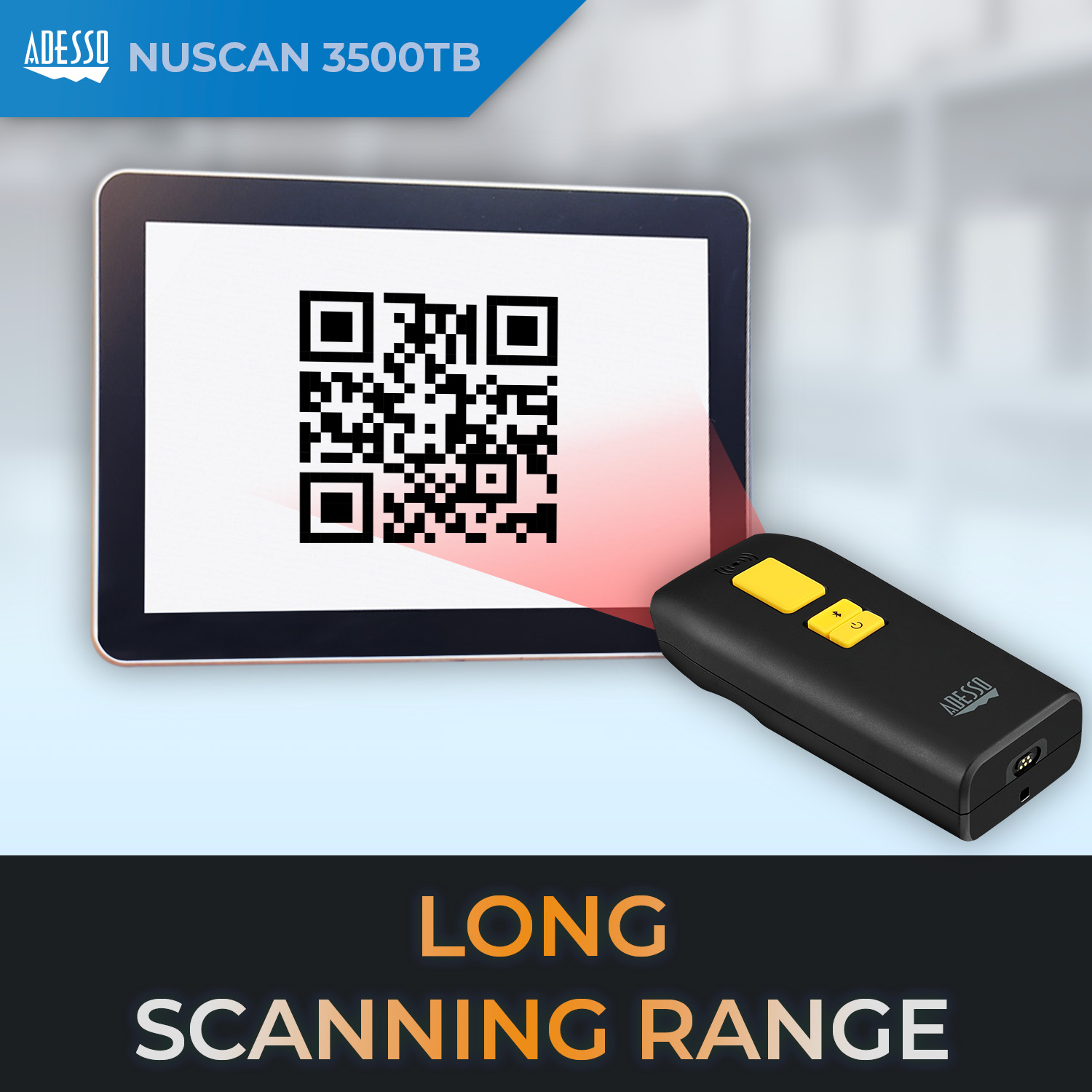

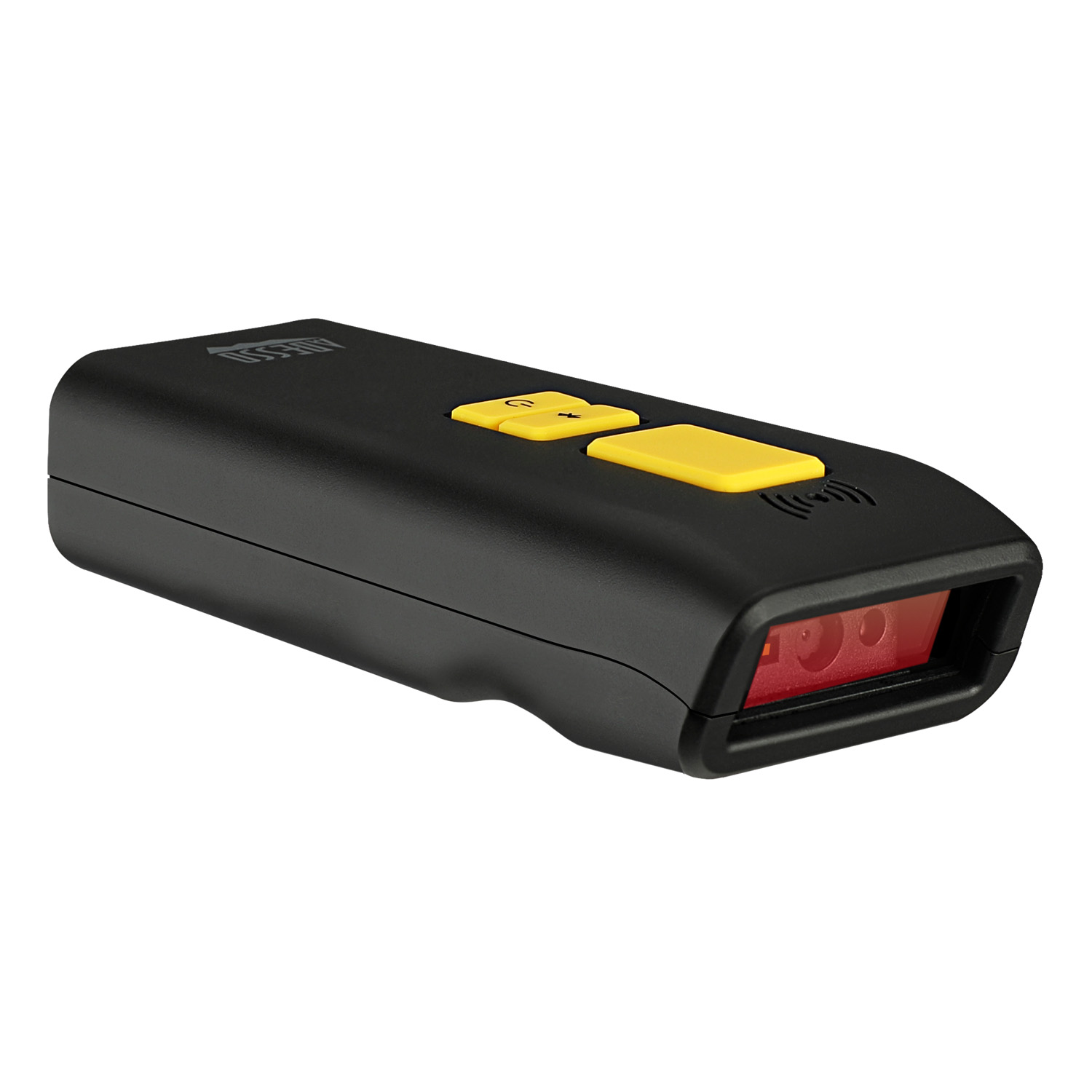

| Long Scanning Range The 2D CMOS decoding engine is able to scan barcodes up to 12 inches scan depth. |
Superior Scanning Performance Equipped with its CMOS sensor the device has a motion tolerance of 24 inches per second, offering fast and accurate scanning results.. |

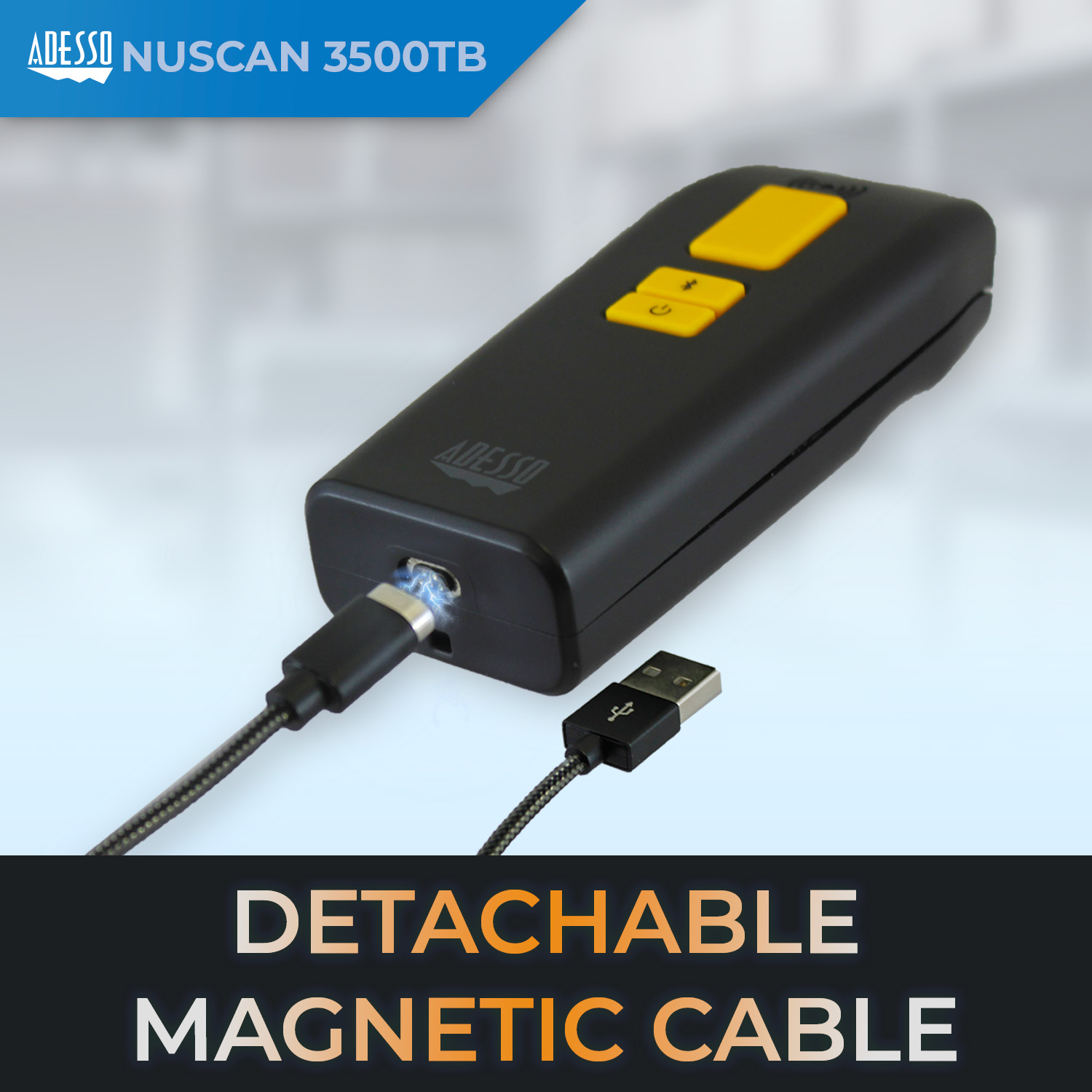

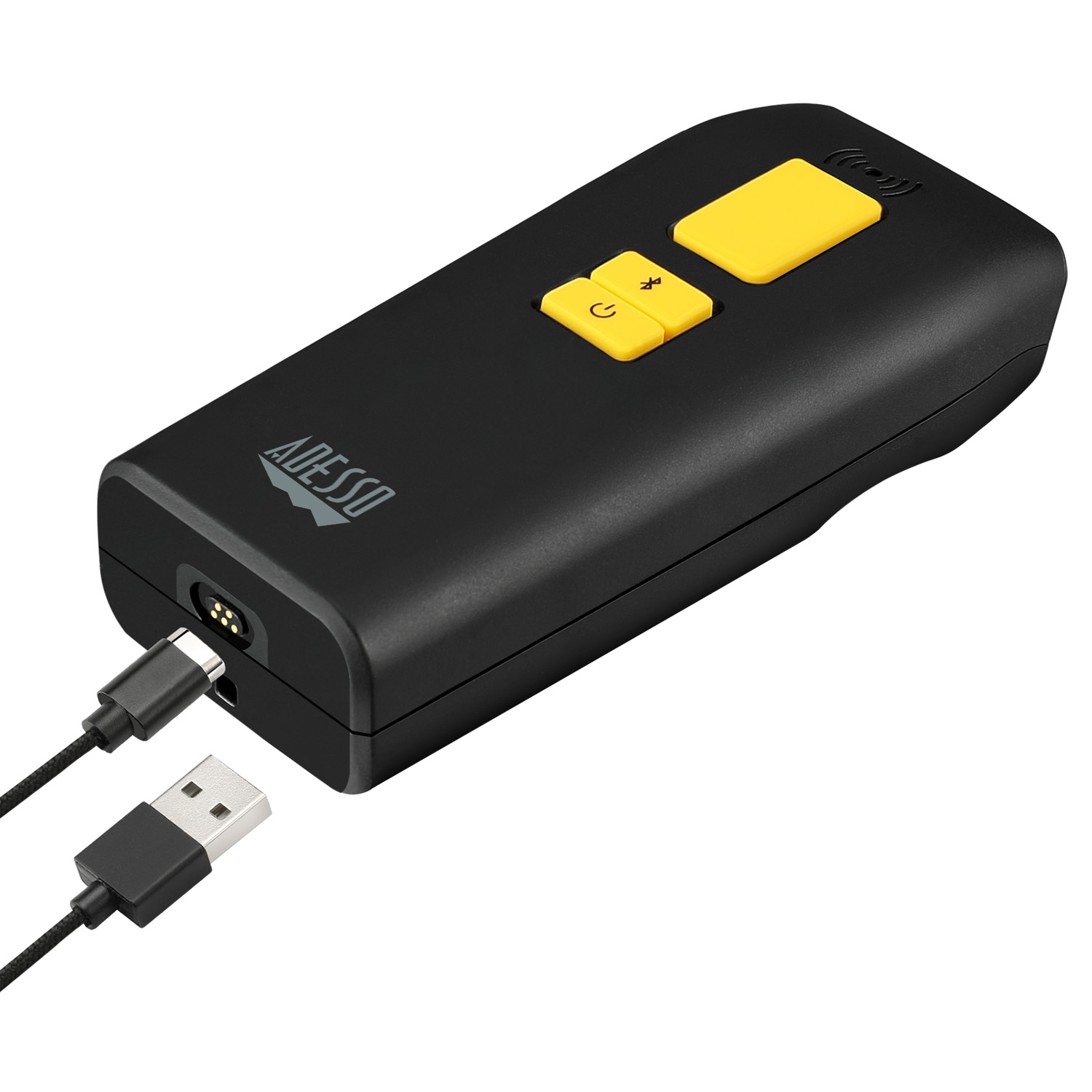

Detachable Magnetic Cable Compare to conventional cables, detachable magnetic cables reduce damage to the connector port that are often caused by day-to-day connecting. |
Specifications
Imager: 640 x 480 CMOS
Light Source: 650 ± 10 nm visible red LED & White
Depth of Field: 0-12 inches (@20mil EAN-13, PC 100%)
Scan Angle: Roll: ±360°, Pitch: ±45°, Yaw: ±40°
Motion Tolerance: 24 inches per second (IPS)
Minimum Bar Width (1D): 5 mil/0.127 mm @ PCS 90%, Code 39
Minimum Bar Width (2D): 10 mil/0.254 mm @ PCS 80%, Data Matrix.
Print Contrast: PCS 30% EAN13 @10mil
Wireless Range: 10m / 30 ft.
Communication: Bluetooth 4.0 Compliant
Indicators (LED): Green/Blue/Orange
Alert Operation: Programmable Beeper Tone
Input Voltage: 3.3 ± 5% VDC
Operating Current: 132 ± 13mA (at maximum)
Battery Capacity: Lithium Ion Battery Rated at 1200mAH
Dimensions: 4.21 (L) x 1.89 (W) x 1.0 (H) in. (107 x 48 x 25 mm)
Weight: 2.96 oz. (84 grams, excluding cable)
Cable: 3′ 4″ (1 meter)
Shock: Withstanding 1.5m freefall drops
Supported 1D Symbologies
| Code 11 Code 25 Codabar Code 39 / Full ASCII Code 93 Code 128 Code 32 DataBar14 EAN 128 EAN 8 &13 |
GS1 DataBars (Omnidirectional, Stacked Omnidirectional, Expanded, Expanded Stacked, Stacked, Limited, Truncated) Industrial 2 of 5 Interleave 2 of 5 ITF/Matrix/Industrial/Standard), ITF 6/14 ISSN / ISBN MSI Plessey Standard Code 39 TELEPEN UPC A & E |
Supported 2D Symbologies
DataMatrix QR Code Micro QR Code PDF417
System Requirements:
- Windows® 7 & above;
- Bluetooth 4.0 (USB port required for charging cable)
- Adesso NuScan 3500TB Barcode Scanner
- Magnetic Charging Cable (ACS-3500)
- Wrist Strip
- Quick Start Guide
Shipping Information
| Item | UPC Code | Package Dimensions | Package Weight | Qty/Carton | Country of Origin |
| NuScan 3500TB | 783750008082 | 6.7″ x 5″ x 1.6″ | 1 lb | 10/40 | China |
Specifications
| Connectivity | USB |
|---|---|
| Sensor | 1D, 2D |
| Features | Antimicrobial, Waterproof |
| Style | Portable |
| Product Dimensions | 107 x 48 x 25 mm (4.21 x 1.89 x 0.98 in) |
| Product Weight | 254 g (0.56 lbs) |
Shipping Info
| Model Number | UPC | Package Dimensions | Package Weight | Carton Qty | Country Of Origin |
|---|---|---|---|---|---|
| NUSCAN 3500TB | 783750008082 | 144 x 90 x 62 mm (5.7 x 3.5 x 2.4 In.) | 254g (0.6 lbs) | 40 | China |
| Connectivity | USB |
|---|---|
| Sensor | 1D, 2D |
| Features | Antimicrobial, Waterproof |
| Style | Portable |
| Product Dimensions | 107 x 48 x 25 mm (4.21 x 1.89 x 0.98 in) |
| Product Weight | 254 g (0.56 lbs) |
| Weight | 254 g |
|---|---|
| Dimensions | 107 × 48 × 25 mm |
