NuScan 2700R
$149.99

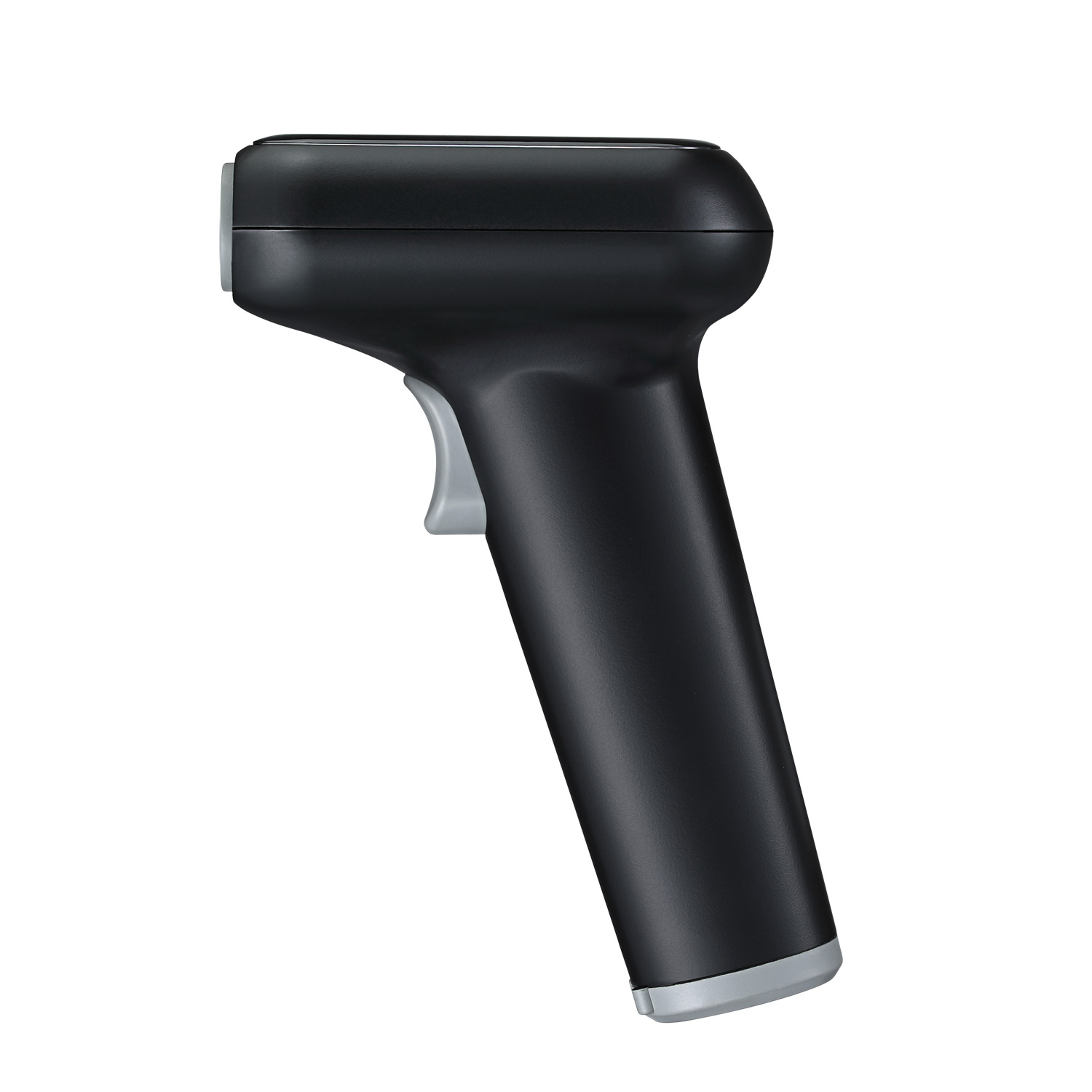

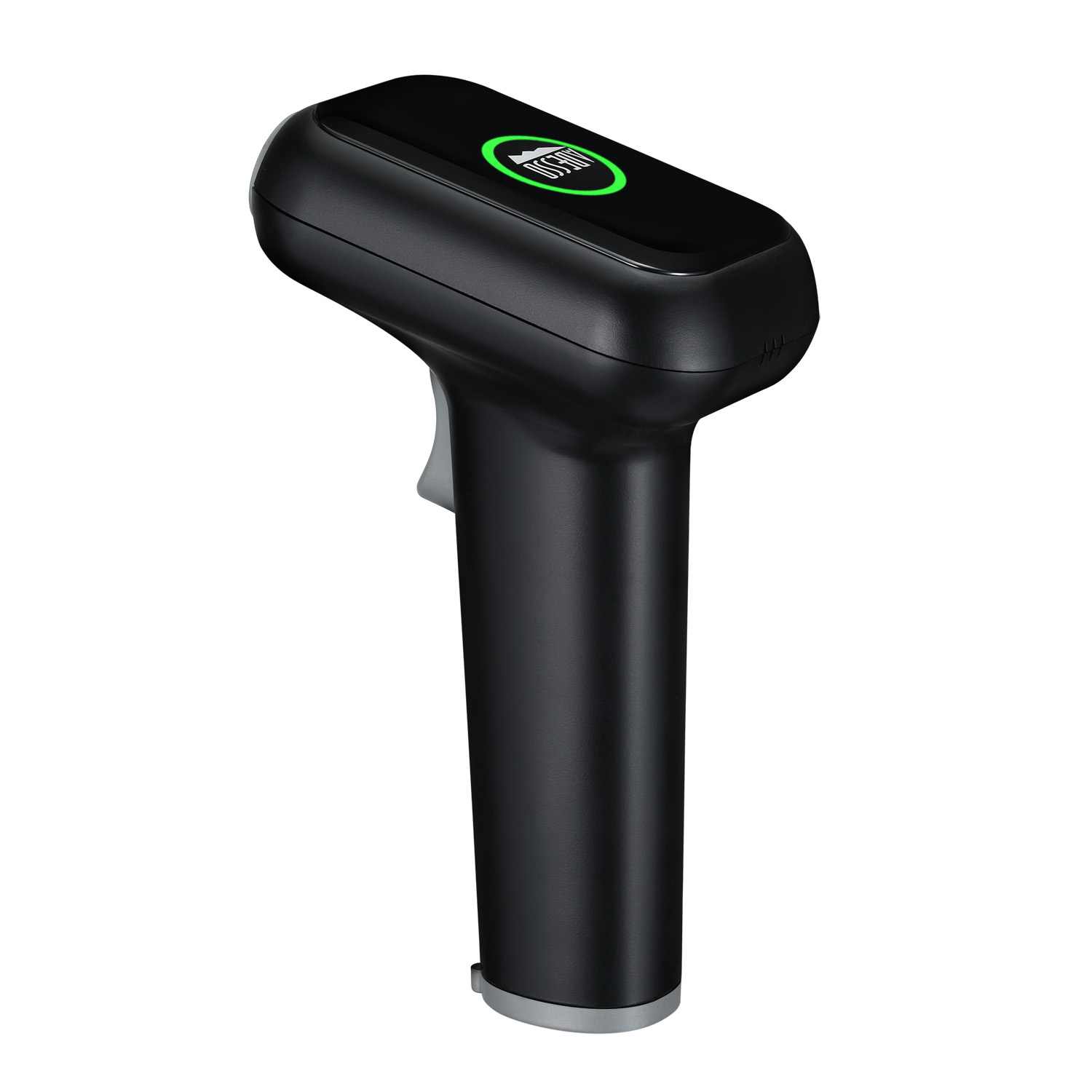

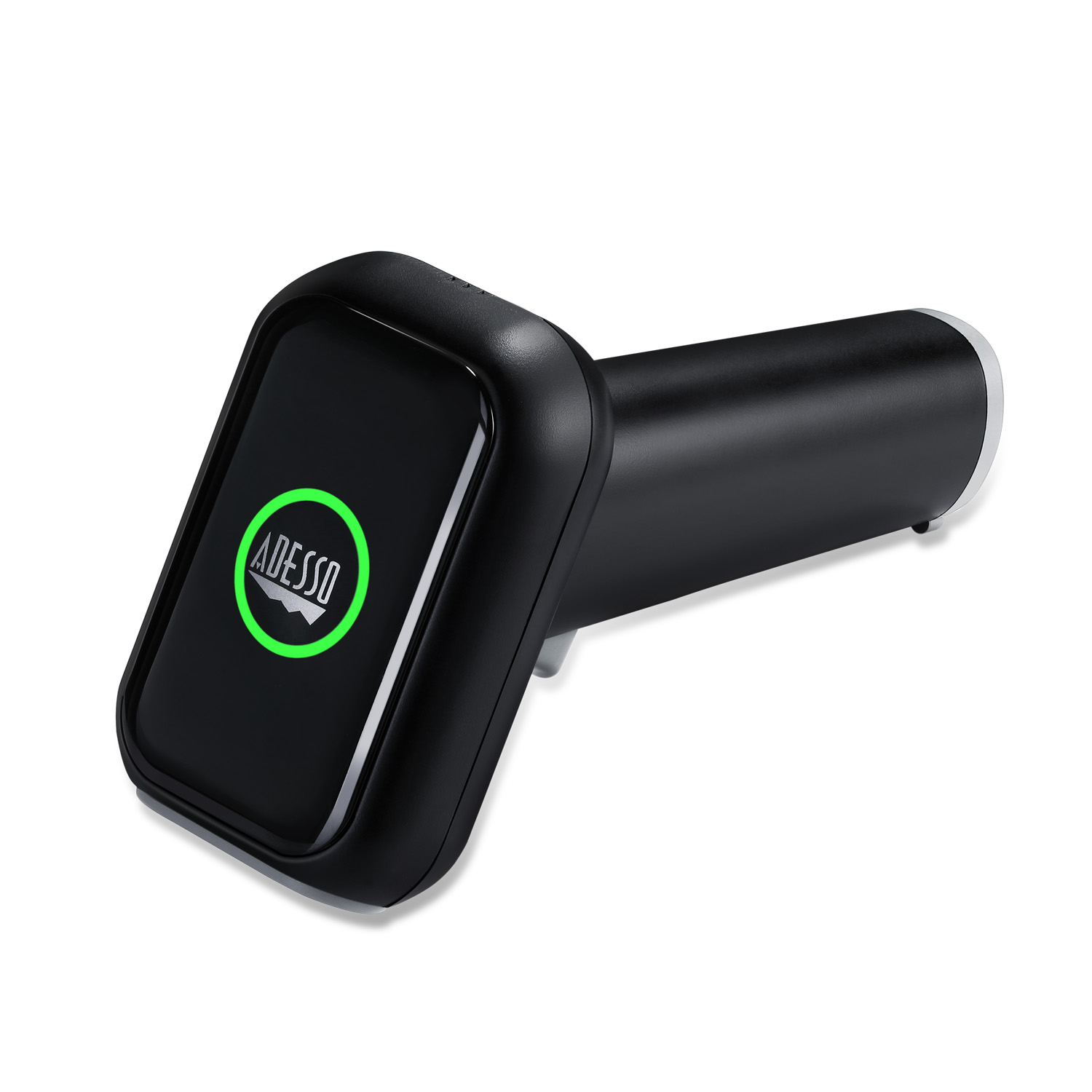

2D Handheld Wireless Barcode Scanner

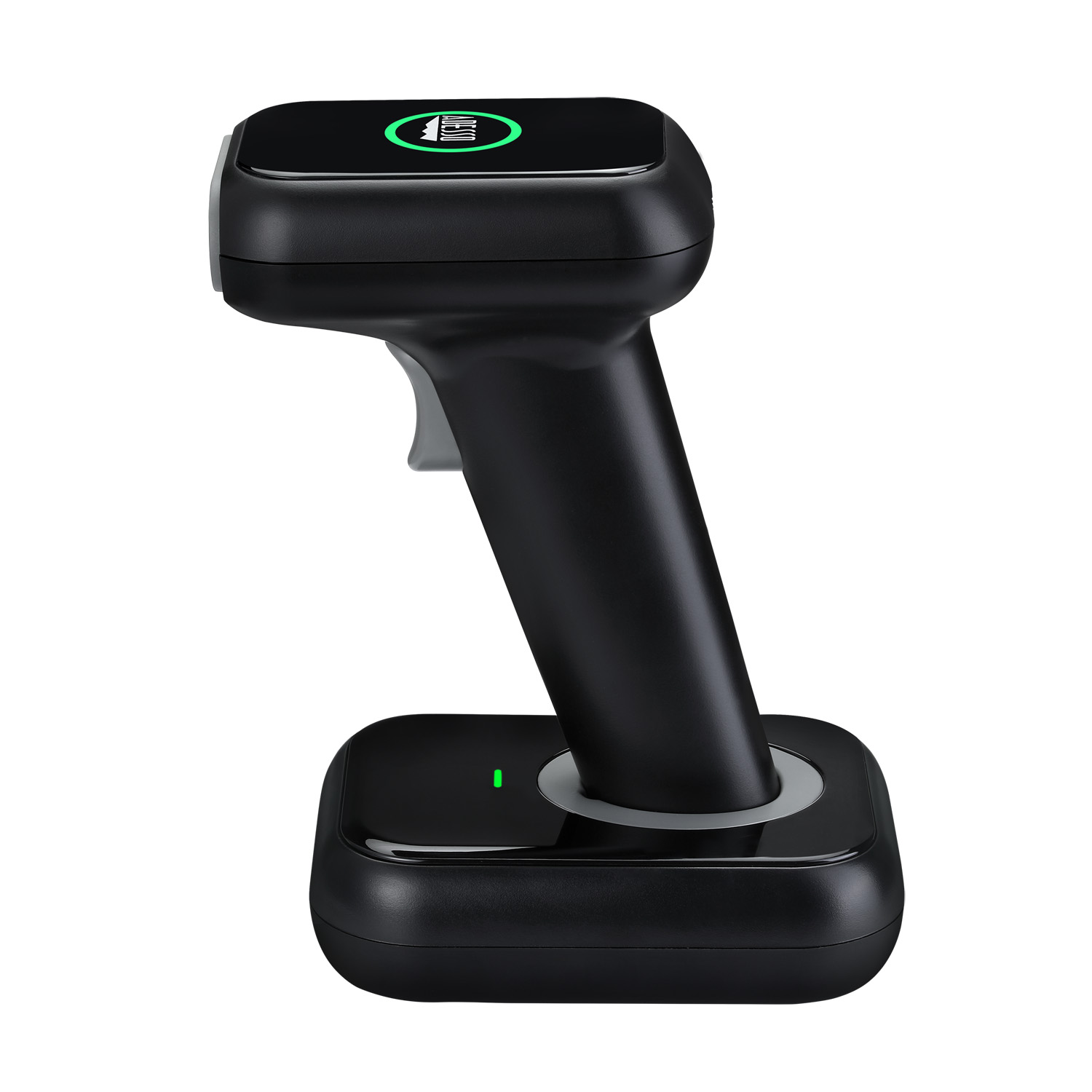

2D Wireless Barcode Scanner with Charging Cradle

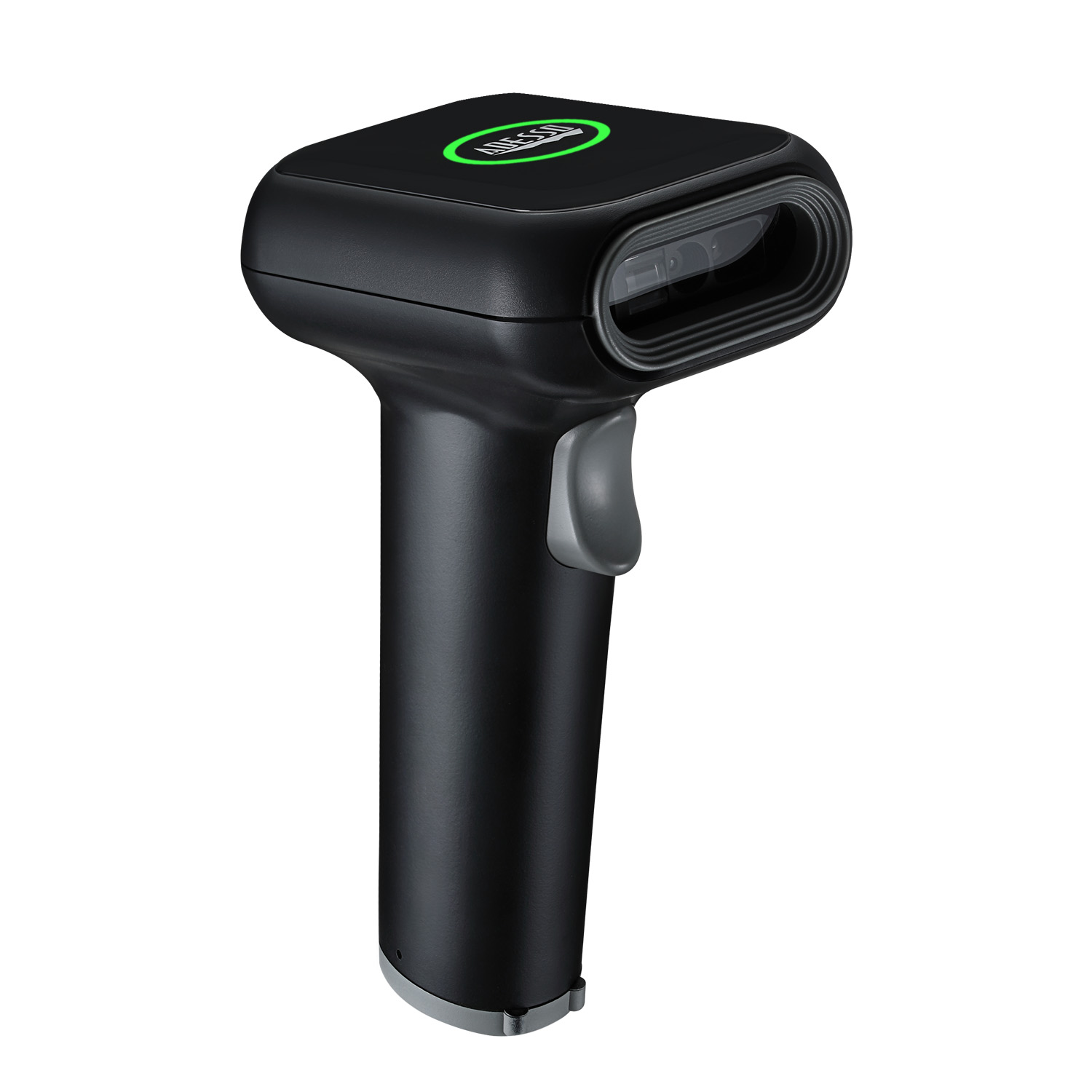

The Adesso NuScan 2700R is the ultimate wireless barcode scanning solution. Its new decoding engine allows it to decode both 2D barcodes, such as QR Code, PDF417, and Data Matrix, and 1D barcodes. The scanning rate of 120 scans per second increases accuracy, therefore increasing efficiency. The 2.4 GHz RF technology provides a wireless range of up to 150 feet. Its built-in USB receiver also makes the scanner completely Plug-n-Play!
 |
||
|
|
|
|
|
|
2.4 GHz RF Wireless Technology

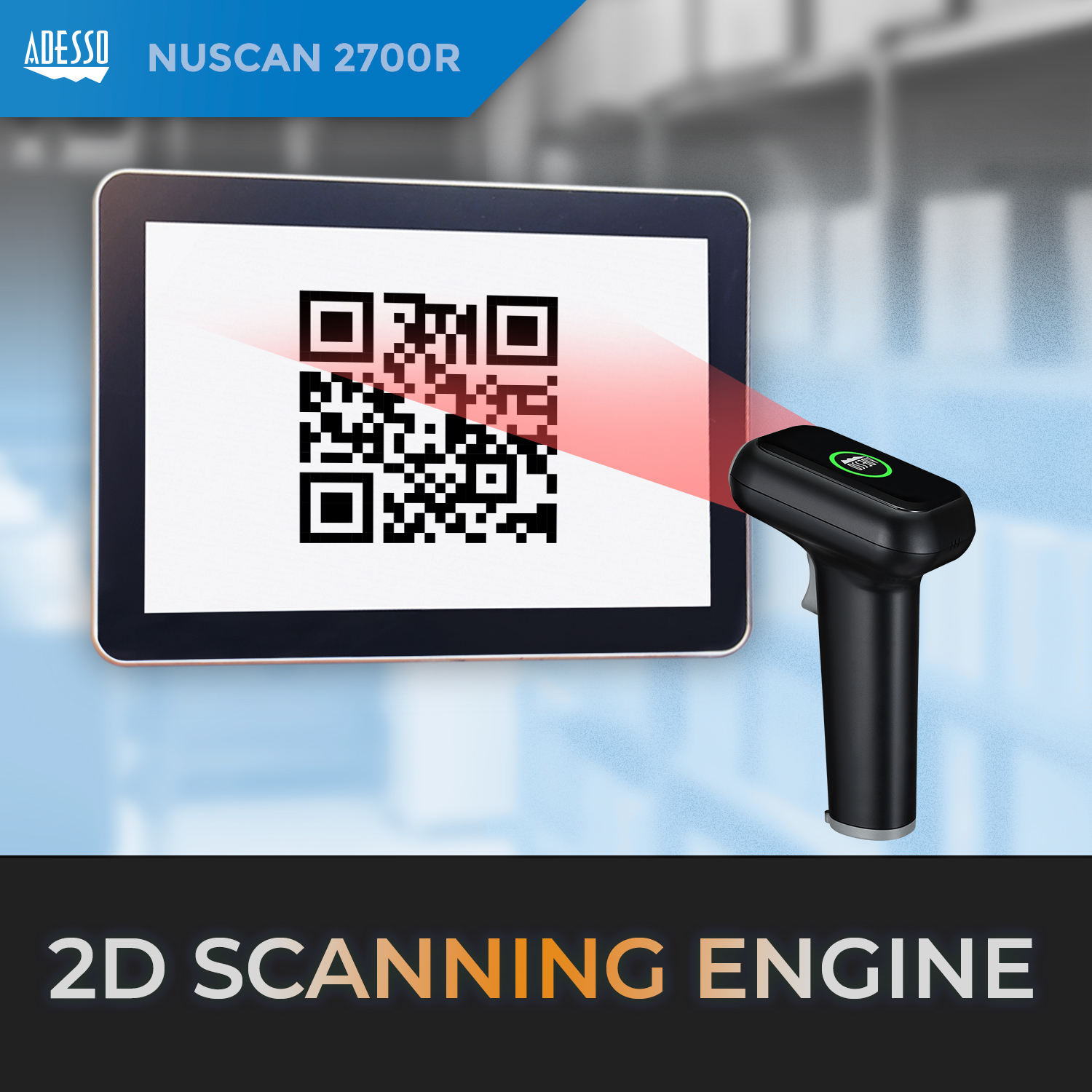

2D Scanning Engine
Spill Resistant
Superior Scanning Performance
Long Scanning Range

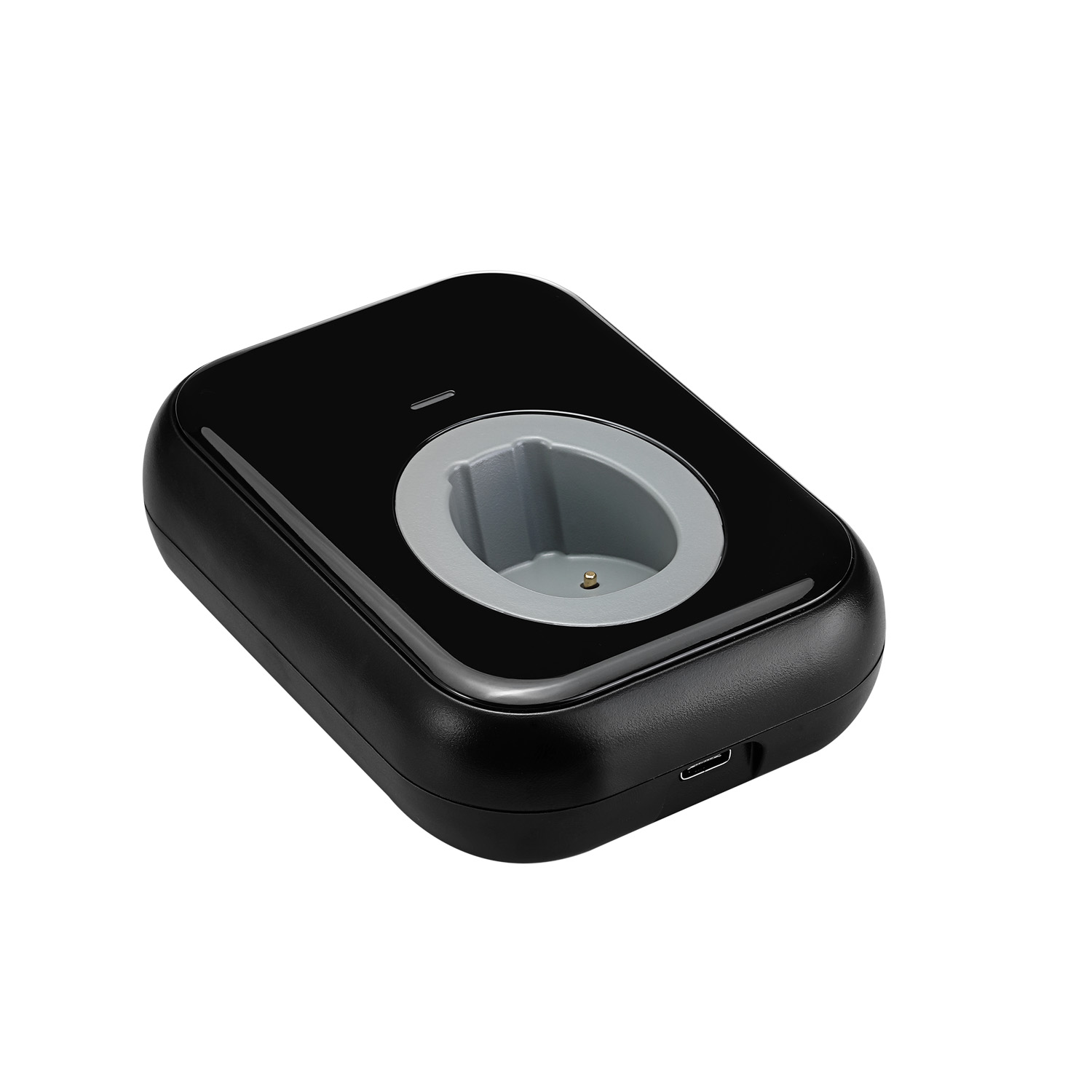

Charging Cradle with Built-In ReceiverProduct Description:
Specifications
| Electrical Specifications: | |
| Power Input voltage: | 5 ± 5% VDC |
| Working Current: | 280mA |
| Battery: | Lithium Ion Battery |
| Charging Time: | 3-4 hrs |

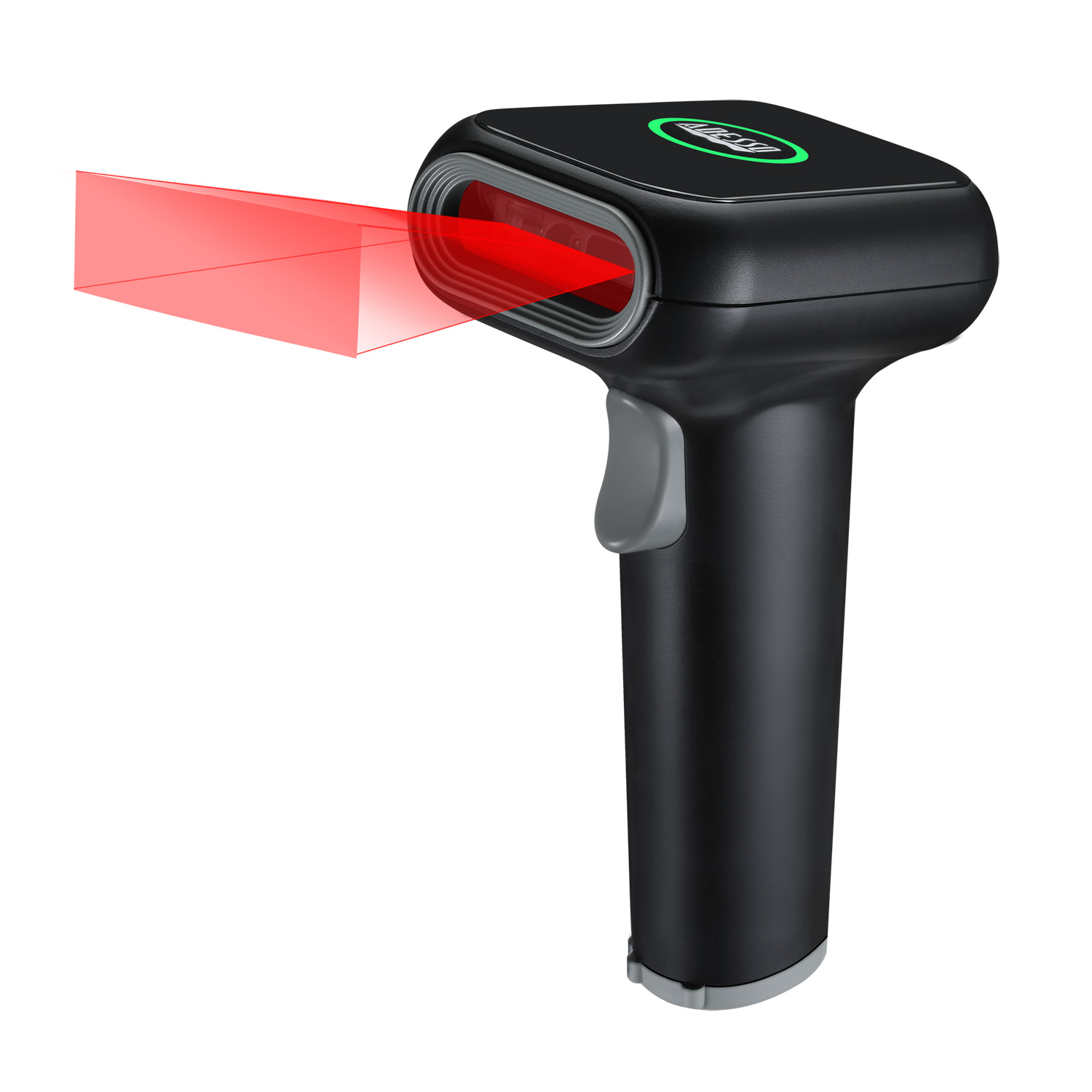

| Light Source: | 640 nm visible red LED |
| Performance: | |
| Scan Pattern | Manual Scan, Auto Scan |
| Interface: | USB Wired/2.4GHz Wireless |
| Wireless Range: | Up to 150 ft. |
| Sensor: | 640*480 CMOS Sensor |
| Scan Rate | 120 FPS |
| Light Level | 0-70000LUX |
| Depth of Field: | 0-12 inches (@20mil EAN-13, PC 100%) |
| Motion Tolerance: | 5 inches per second (IPS) |
| Scan Angle | Roll: ±360°, Pitch: ±45°, Yaw: ±40° |
| Print Contrast:: | >25% |
| Alert Operation: | LED light indicator and beeper |
| Minimum Resolution Supported | 40 mm 13 mil |
| Environmental | |
| Operating Temperature: | -20°C to 55°C (-4°F to 131°F) |
| Operating Humidity : | 5% ~ 95% (non-condensing) |

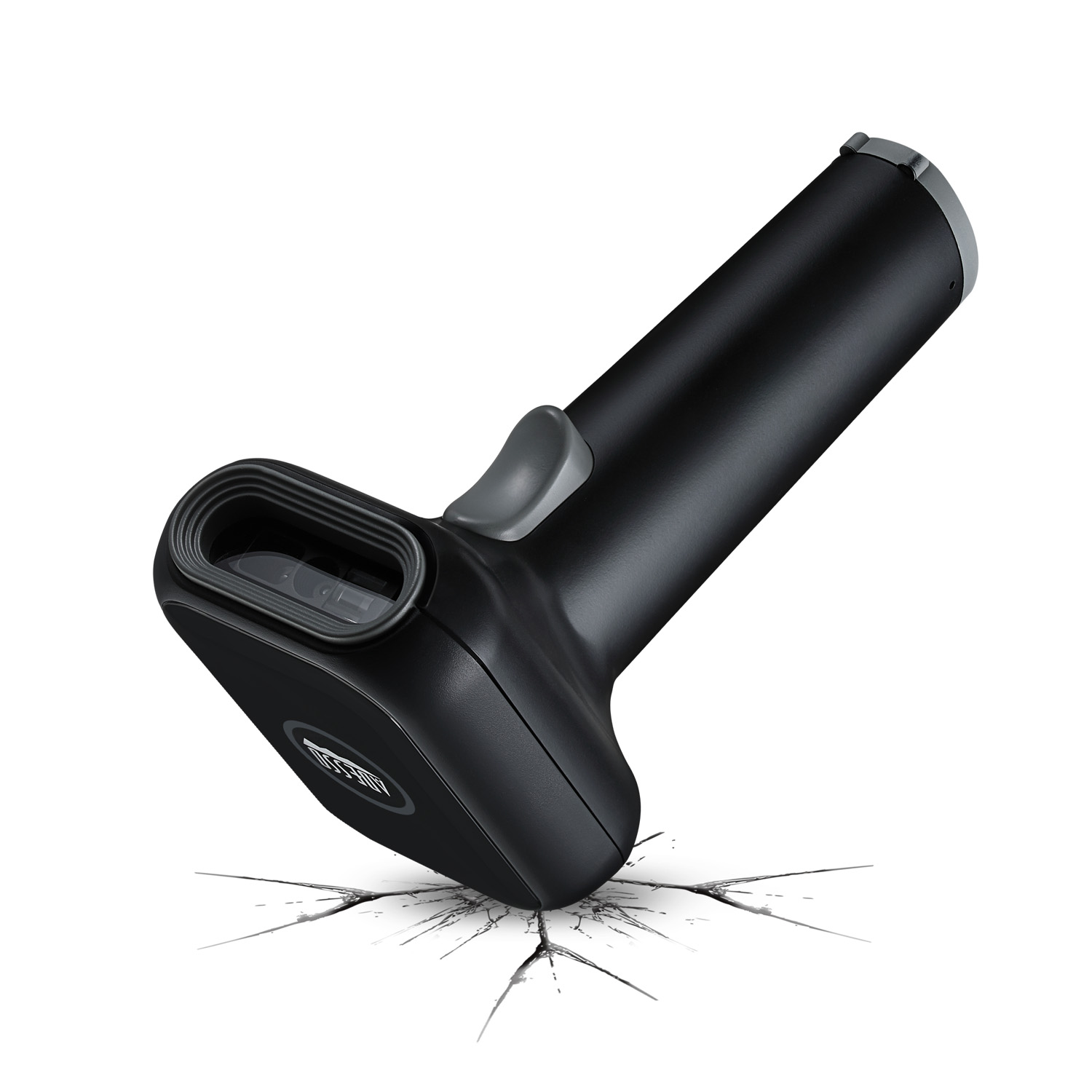

| Shock Resistance: | Withstanding 1.5m freefall drops |
| Regulatory | FCC, CE, RoHS, IC |
| Physical Spec | |
| Dimensions (L x W x H): | 6.61 x 3.34 x 2.44 inch (168 x 85 x 62mm) |
| Weight | 0.22 lbs/100 g |
| Cable Length: | 5 Ft (1.5meters) |
| Country of Origin | Made in China |
Supported Symbologies
- 1D: EAN-8, EAN-13, EAN-13 2 add-on, EAN-13 5 add-on, ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 32 Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, GS1-128 GS1 Databar (RSS14), GS1 DataBar Limited, GS1 DataBar Expanded
- 2D: PDF417, MicroPDF417, MicroQR, Data Matrix, QR, Aztec
System Requirements:
- Windows®2000 / XP / Vista / 7 / 8 / 10
- Mac® OS X
- Interface: USB or Wireless 2.4GHz
Includes:
- Adesso NuScan 2700R – Wireless 2D Barcode Scanner
- Charging Cradle
- Quick Start Guide
Shipping Information
| Item | UPC Code | Package Dimensions | Package Weight | Qty/Carton | Country of Origin |
| NuScan 2700R | 783750010658 | 7.5″ x 4.5″ x 3.3″ | 1.31 lb | 10/40 | China |
Specifications
| Connectivity | Wireless (2.4Ghz RF) |
|---|---|
| Sensor | 1D, 2D |
| Style | Handheld |
| Product Dimensions | 168 x 85 x 62 mm (6.61 x 3.35 x 2.44 in) |
| Product Weight | 100 g (0.22 lbs) |
Shipping Info
| Model Number | UPC | Package Dimensions | Package Weight | Carton Qty | Country Of Origin |
|---|---|---|---|---|---|
| NuScan 2700R | 783750010658 | 168 x 85 x 62 mm (6.6 x 3.3 x 2.4 In.) | 100g (0.2 lbs) | - | - |
| Connectivity | Wireless (2.4Ghz RF) |
|---|---|
| Sensor | 1D, 2D |
| Style | Handheld |
| Product Dimensions | 168 x 85 x 62 mm (6.61 x 3.35 x 2.44 in) |
| Product Weight | 100 g (0.22 lbs) |
| Weight | 100 g |
|---|---|
| Dimensions | 168 × 85 × 62 mm |
