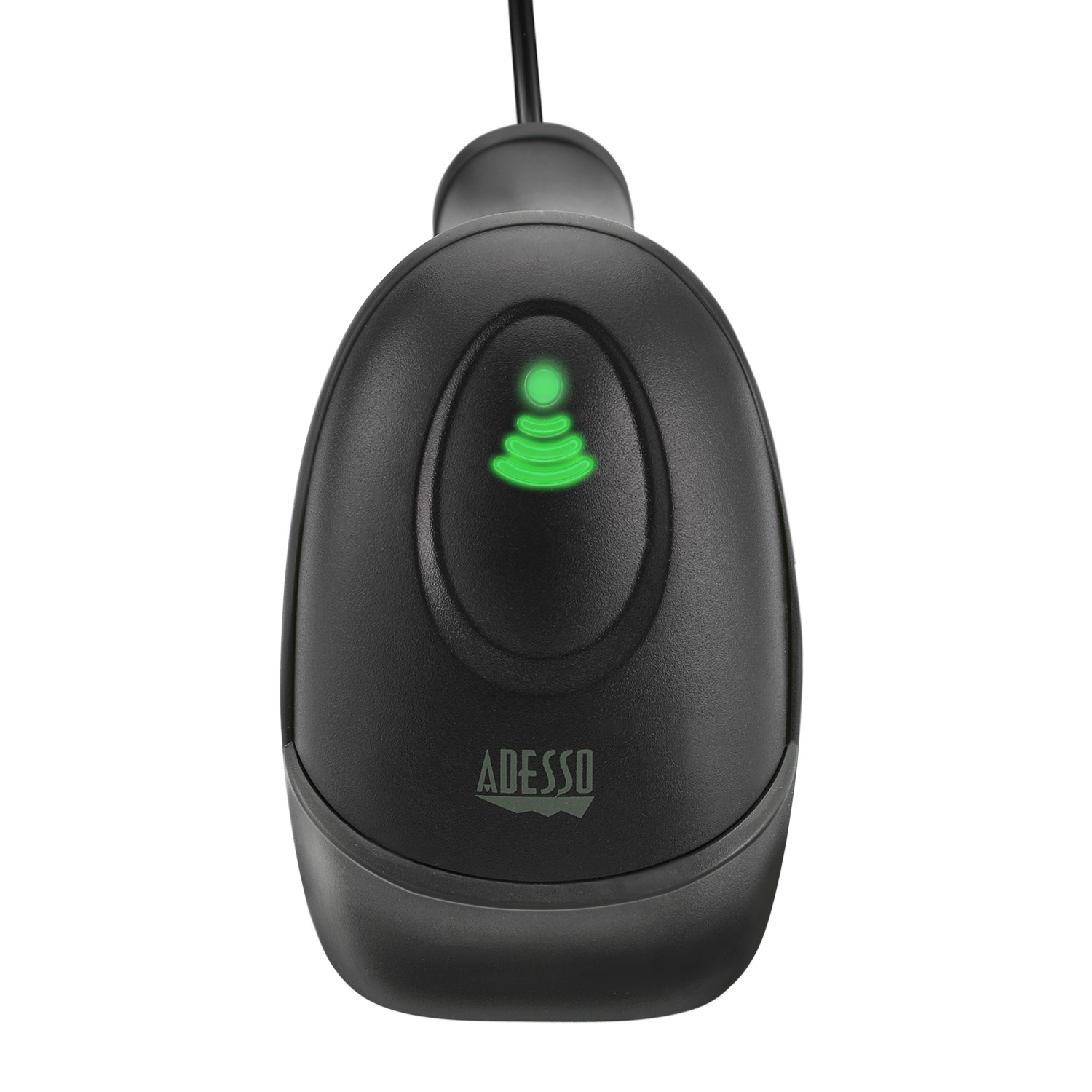

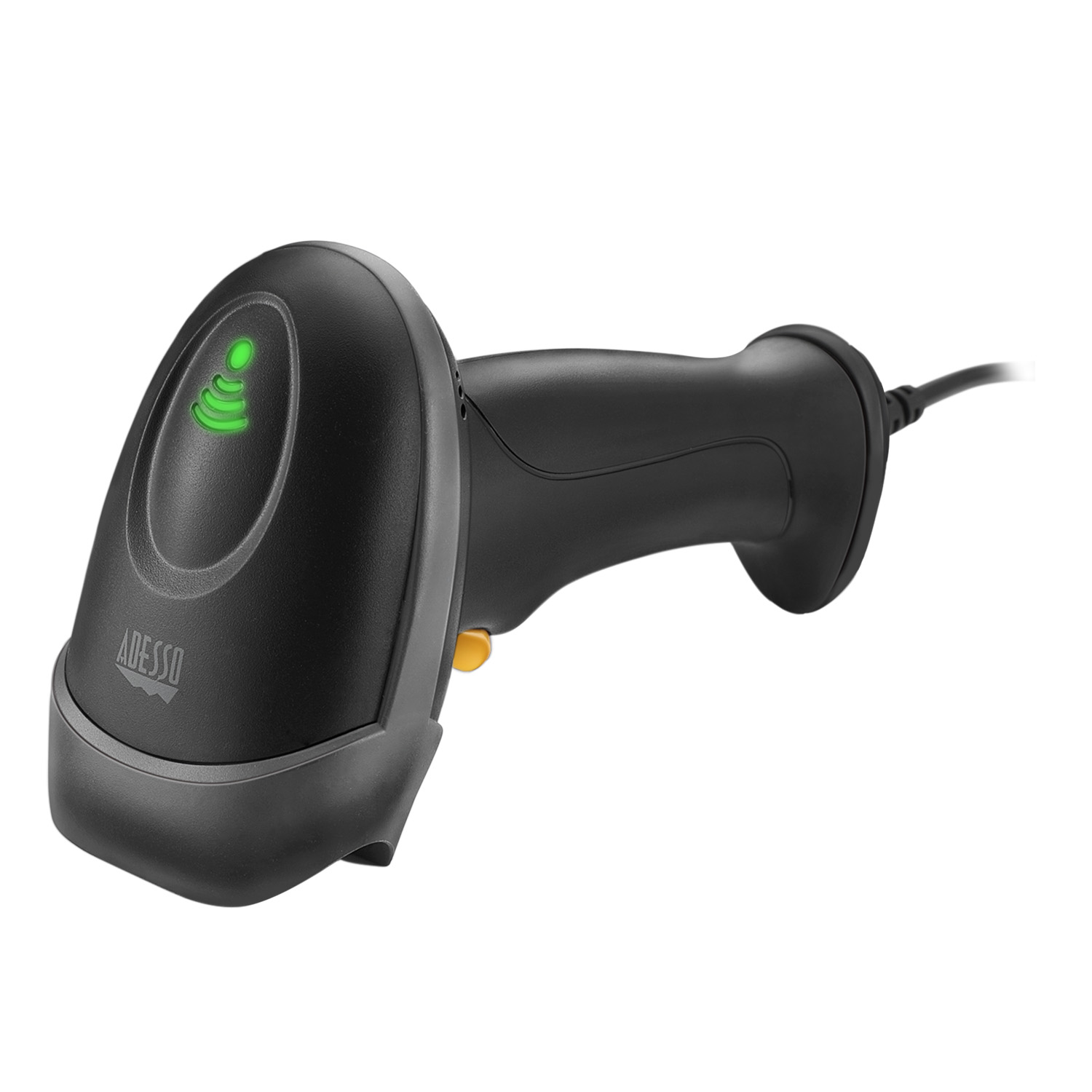

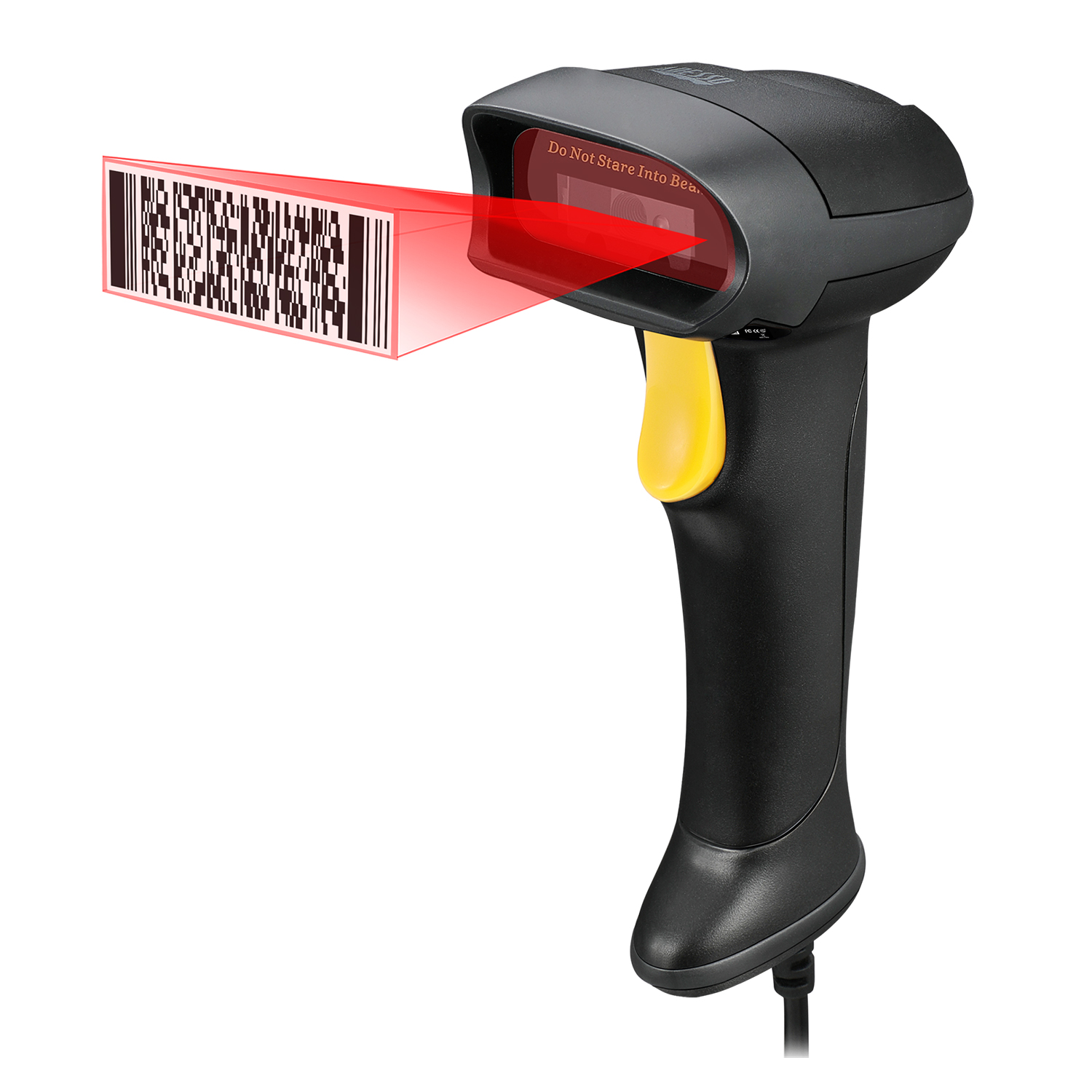

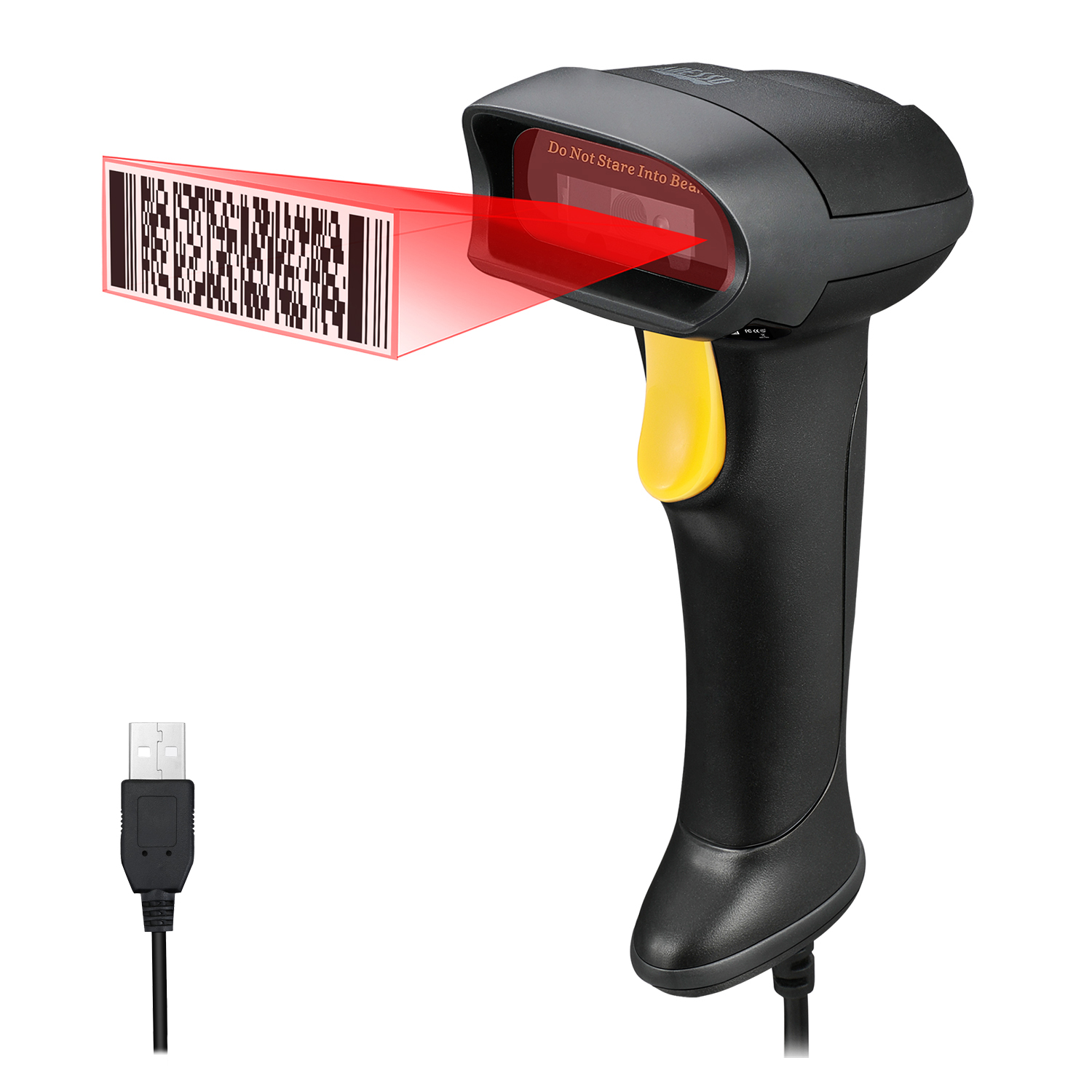

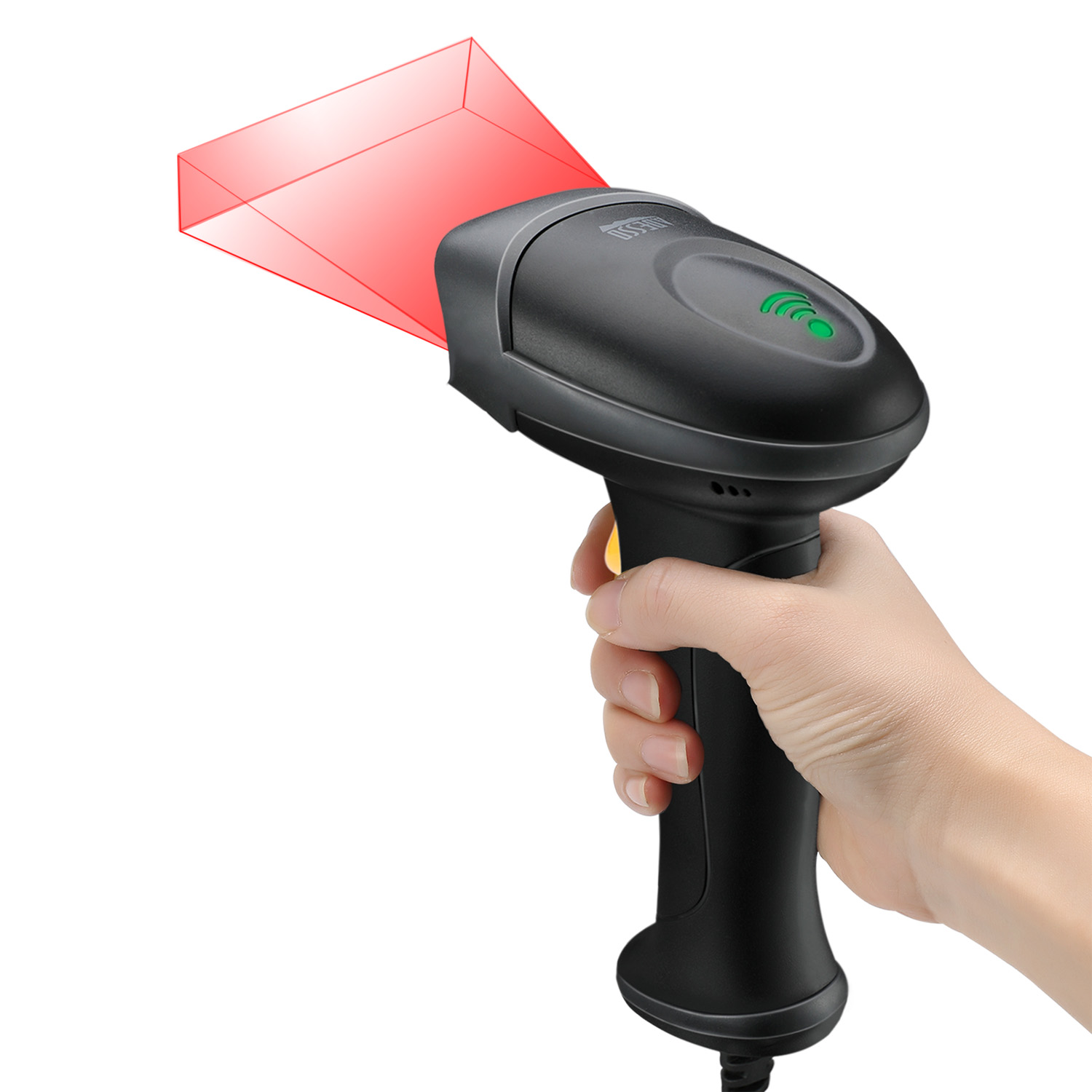

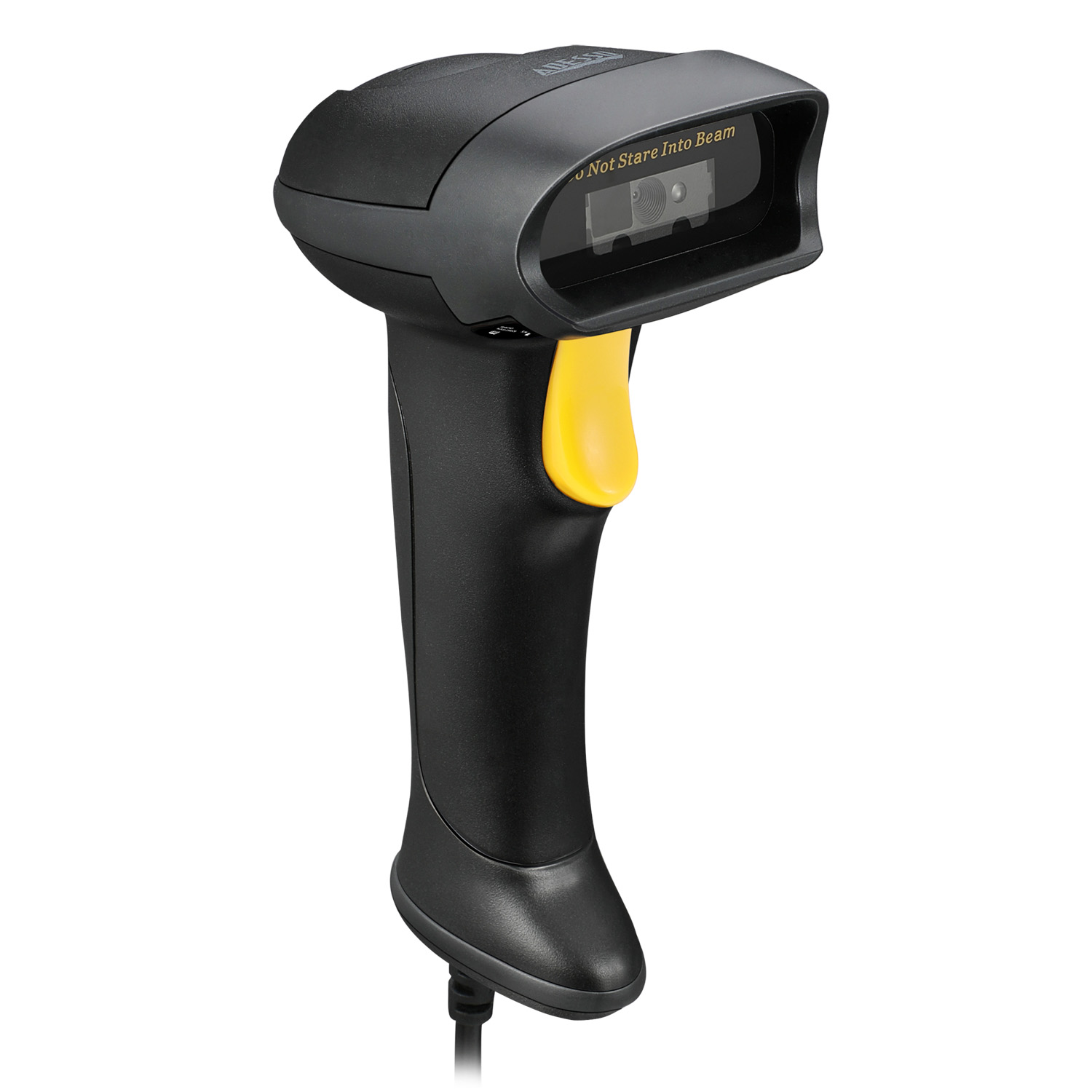

NUSCAN 2500TU
$149.99
Medical Grade Handheld 2D Barcode Scanner
The Adesso NuScan 2500TU is compatible with a wide range of 1D and 2D barcode symbologies. The NuScan 2500TU is completely plug and play, making it extremely reliable. This makes it ideal in many different applications. The scanner is also made with antimicrobial substances which helps keep away germs and viruses. The spillproof feature also ensures that fluids from accidental spills won’t stay inside the device. With extra protective design such as the drop protection, the device is less likely to become damaged from accidental drops. Last but not least, compatible with major 2D barcodes(PDF 417, QR Codes, Micro QR Codes, and Data Matrix), and with 1D barcodes like UPC-A, Code 39, Code 128, and more), the NuScan 2500TU is great for your scanning needs.
 |
||
|
|
|
|
|
|

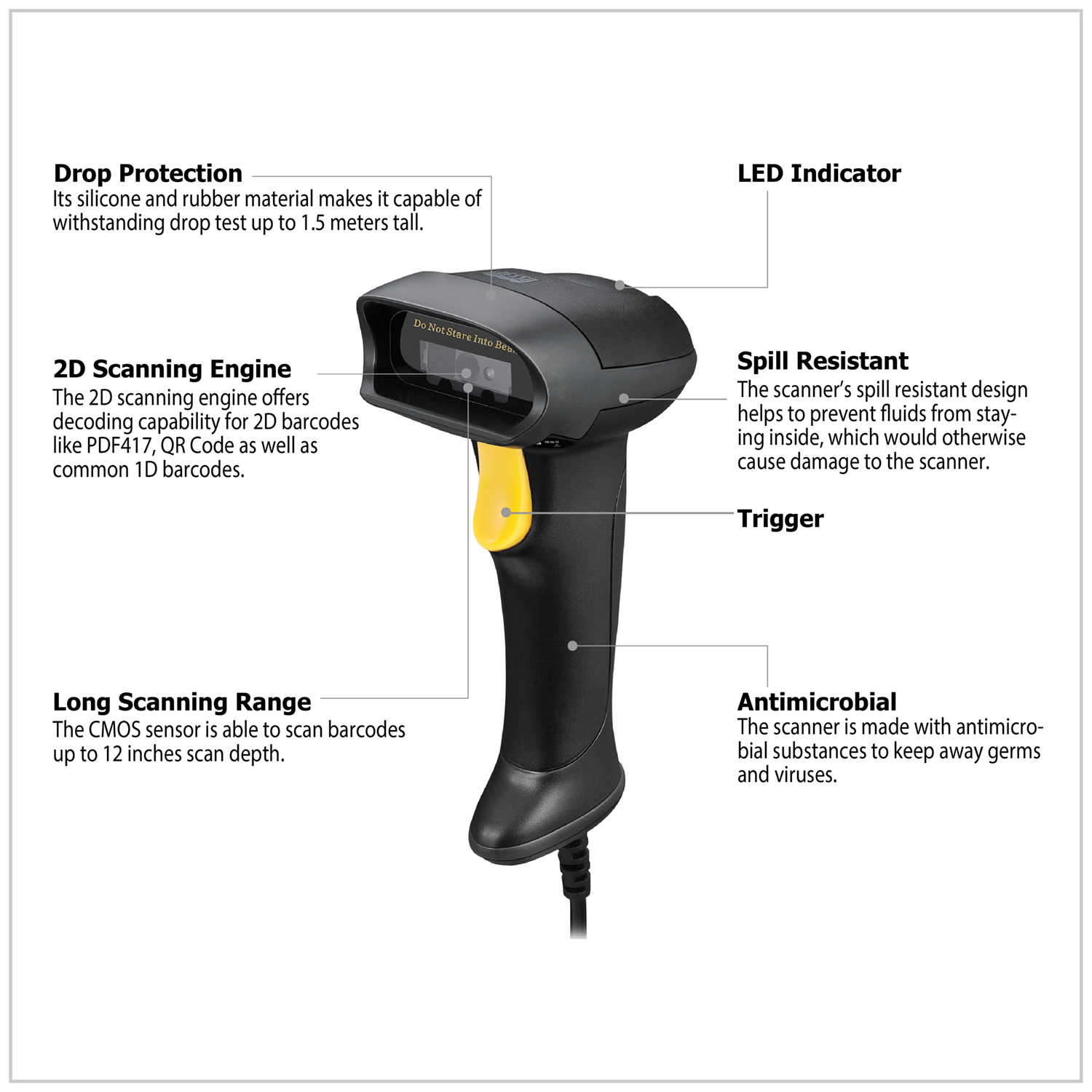

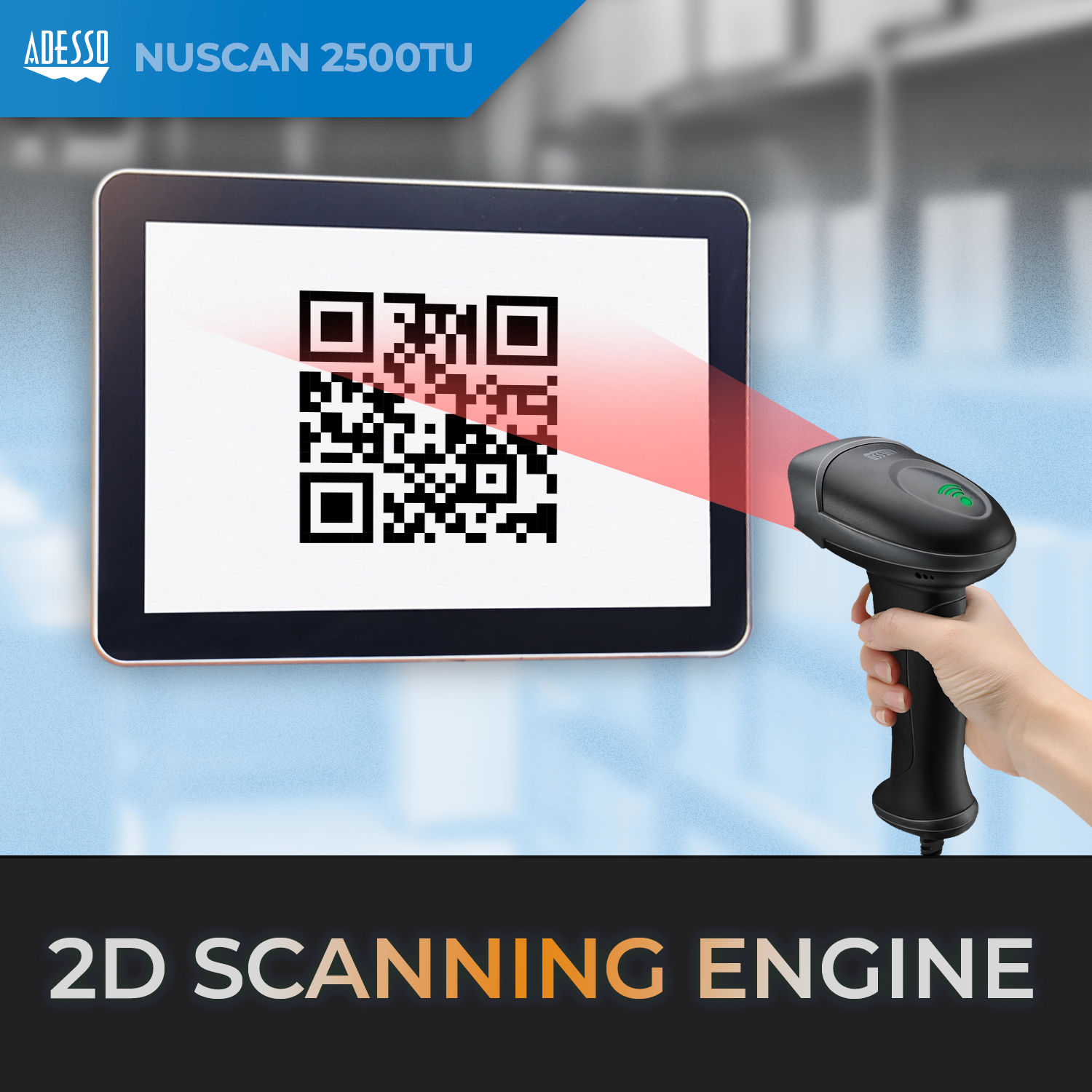

2D Scanning Engine

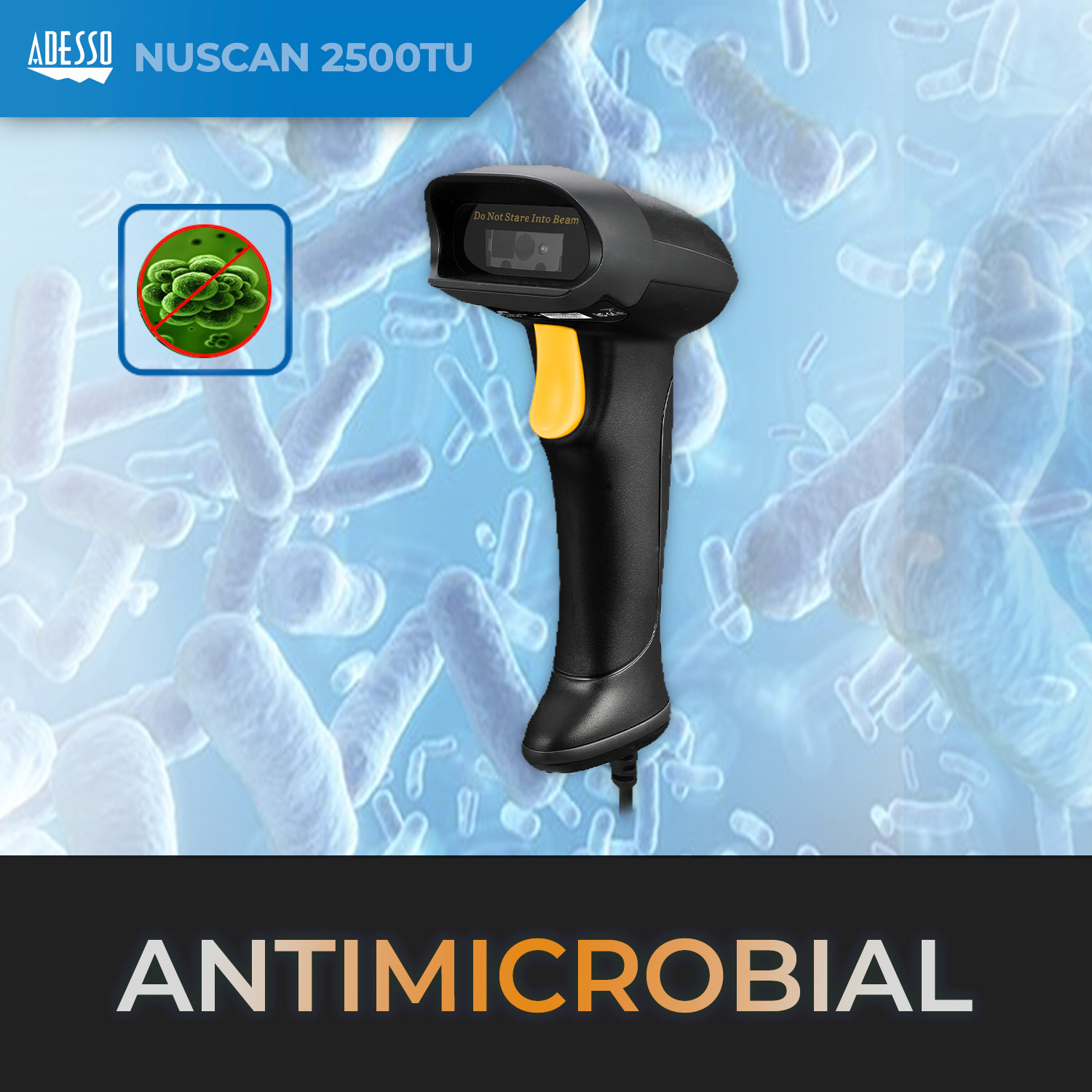

Antimicrobial

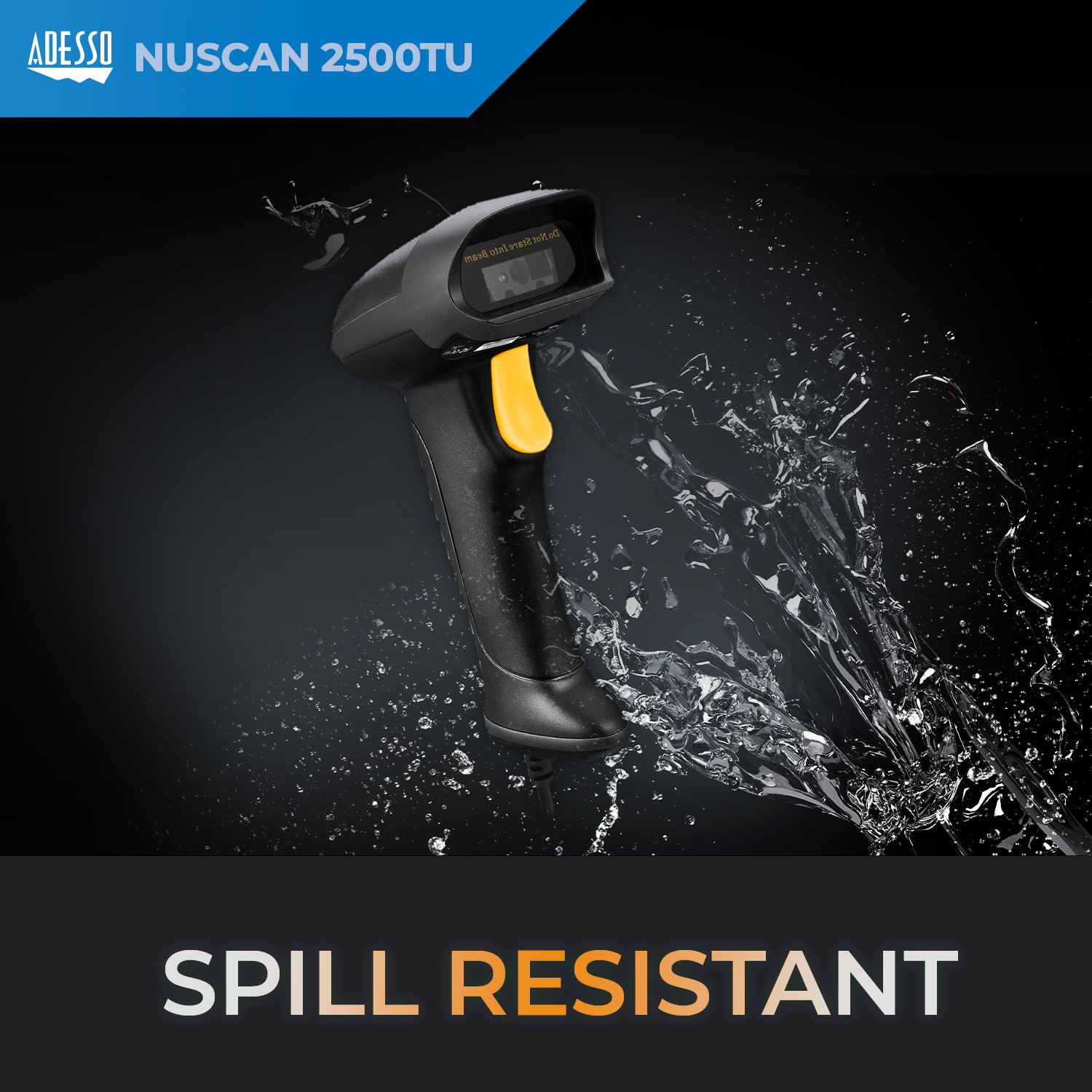

Spill Resistant

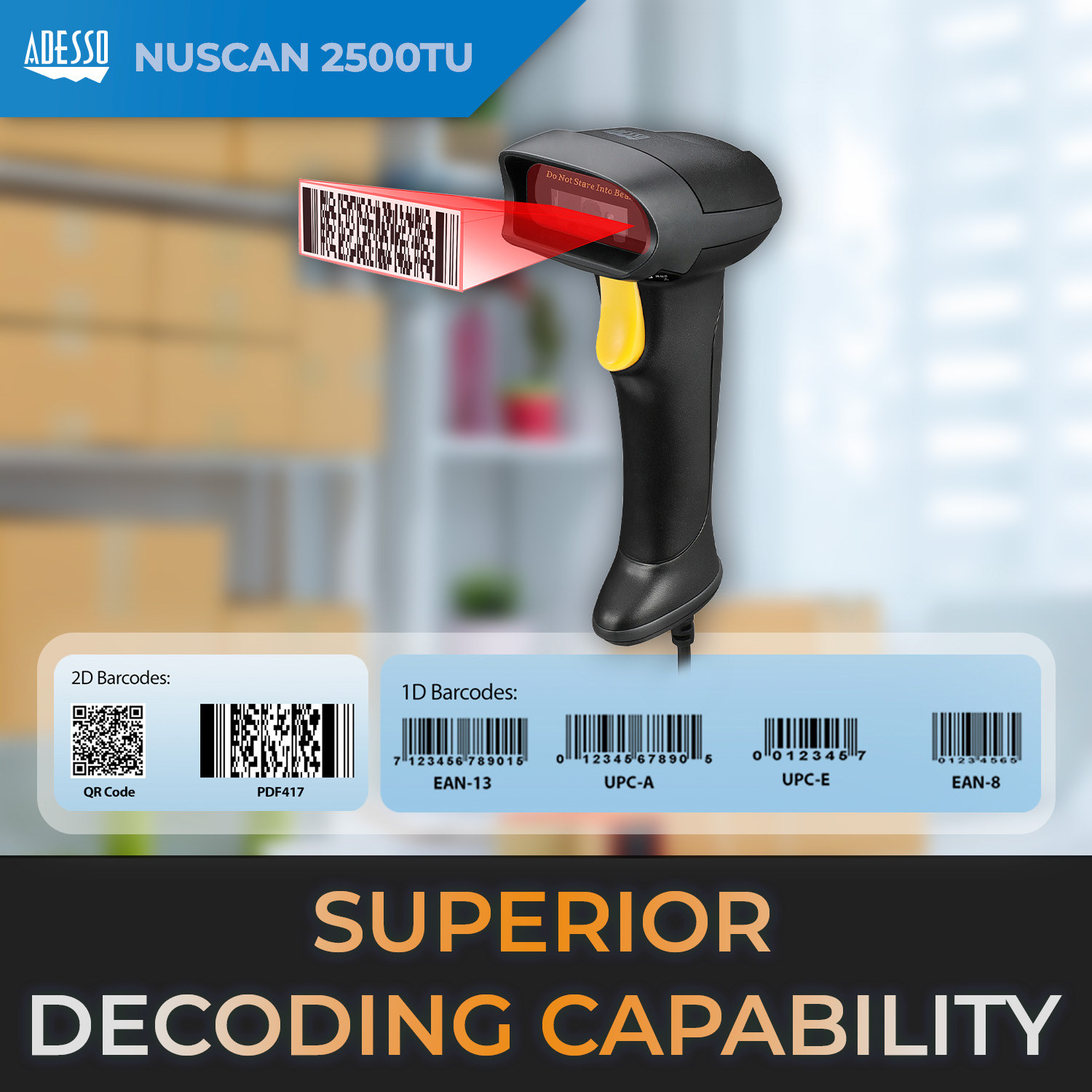

Superior Scanning Performance

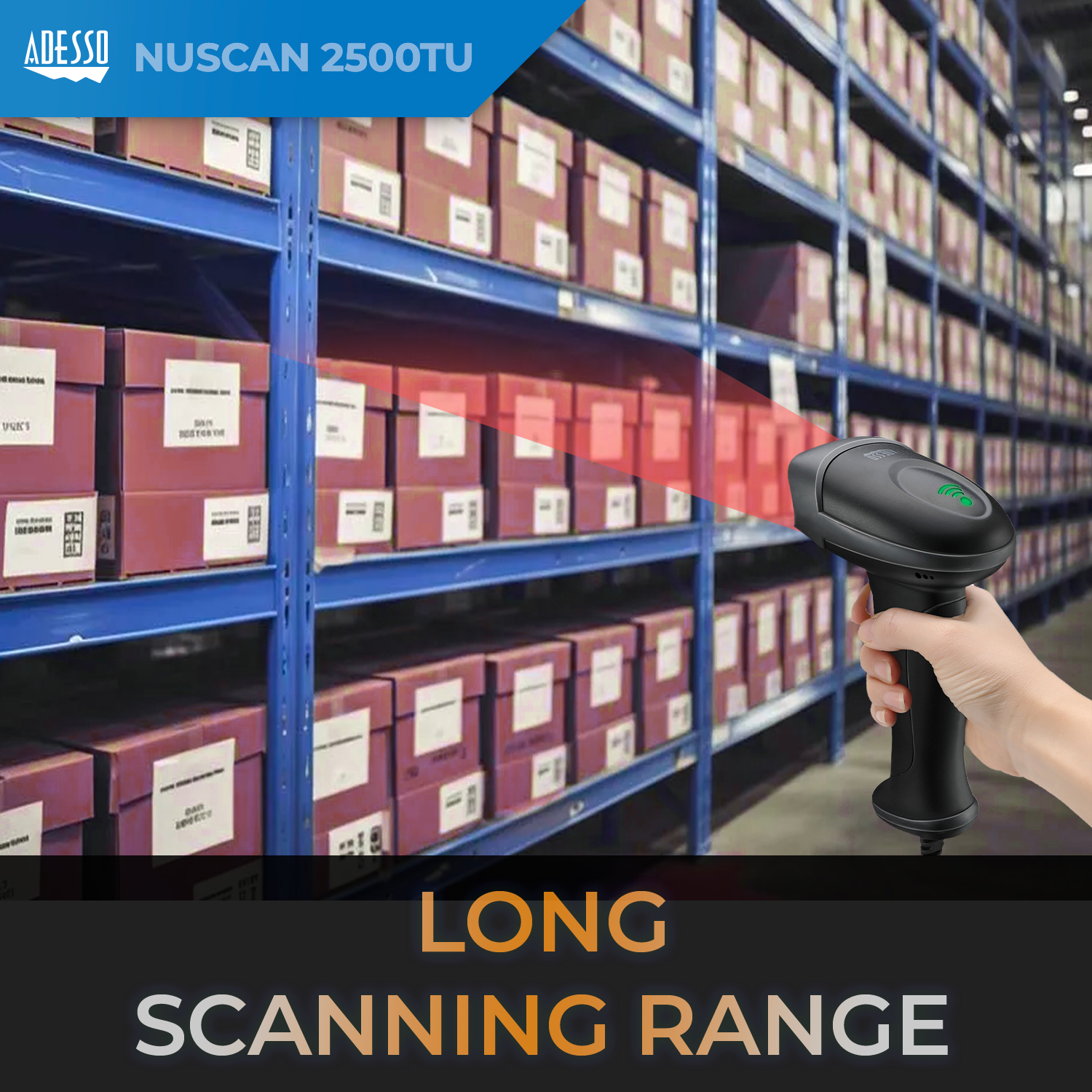

Long Scanning Range

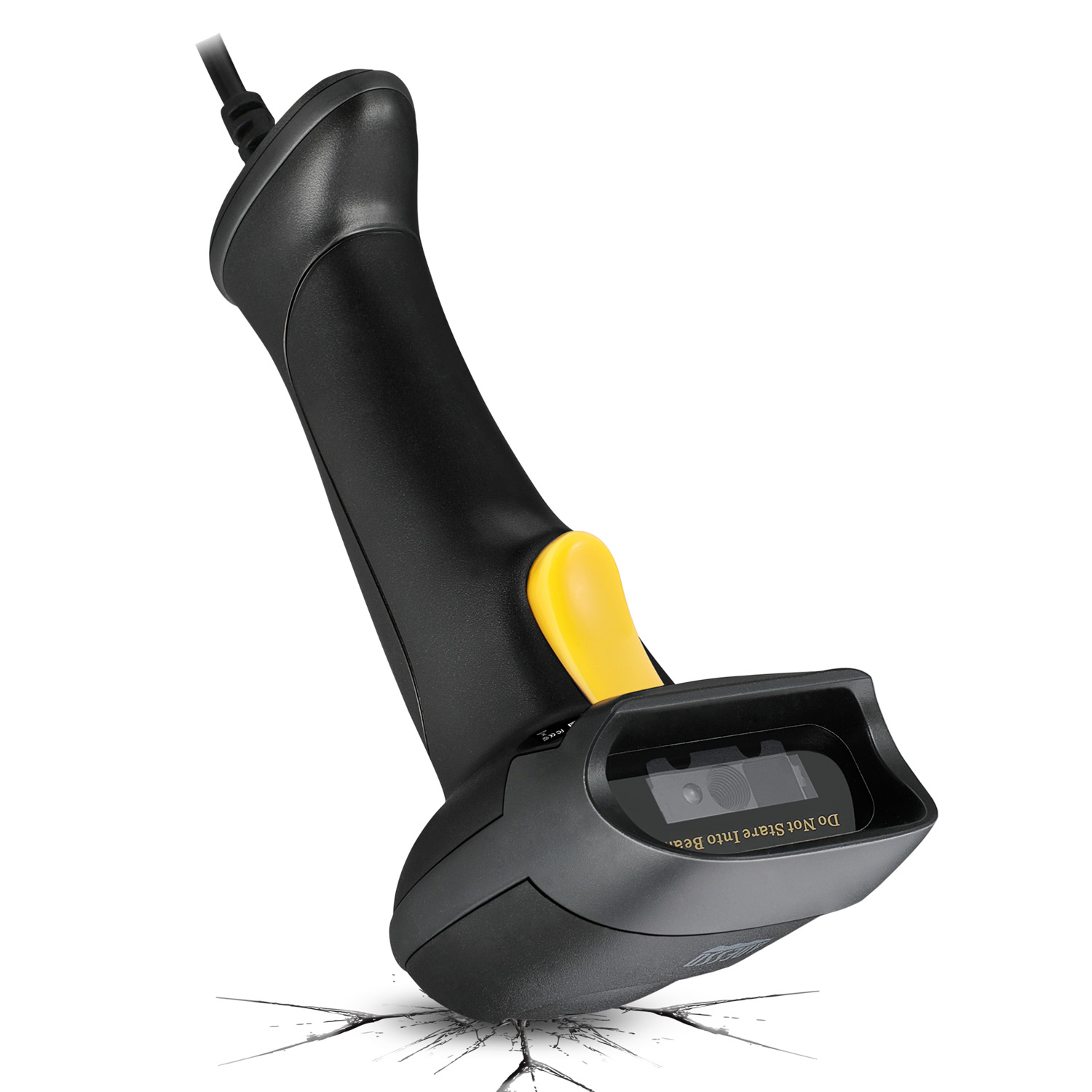

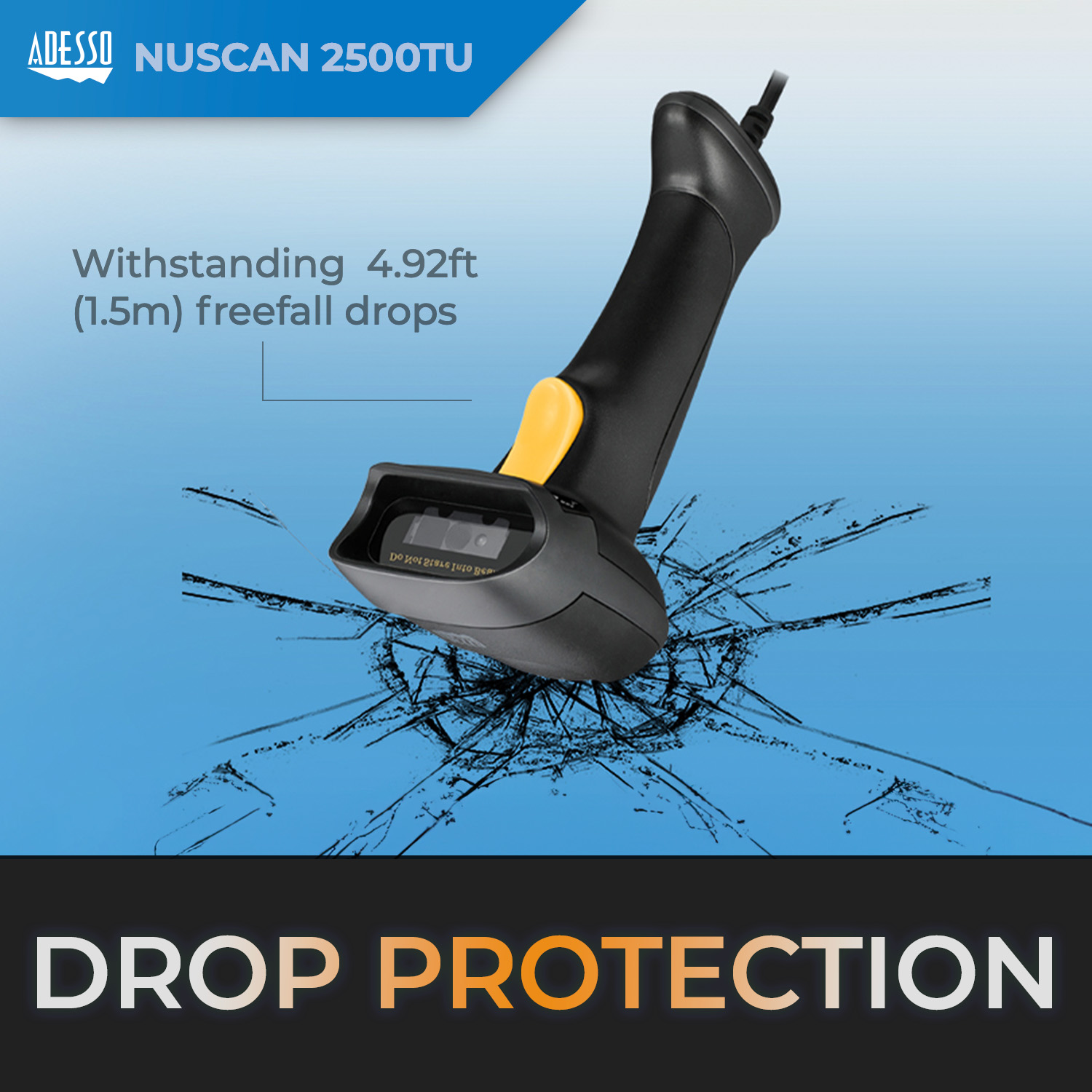

Drop Protection
Specifications
| Mechanical: | |
| Dimensions (L x W x H): | 6.75 (L) x 3.7 (W) x 2.7 (H) in. (172 x 94 x 68 mm) |
| Weight | 0.38 lbs (174g cable excluded) |
| Cable Length: | 5™ (1.5meters) |
| Electrical: | |
| Power Input voltage: | 3.3 ± 5% VDC |
| Working Current: | 132 ± 13mA (at maximum) |
| Light Source: | 650 ± 10 nm visible red LED |
| Performance: | |
| Interface: | USB |
| Sensor: | CMOS Sensor |
| Minimum Bar Width (1D): | 5 mil/0.127 mm @ PCS 90%, Code 39 |
| Minimum Bar Width (2D): | 10 mil/0.254 mm @ PCS 80%, Data Matrix. |
| Depth of Field: | 0-12 inches (@20mil EAN-13, PC 100%) |
| Motion Tolerance: | 5 inches per second (IPS) |
| Scan Angle | Roll: ±360°, Pitch: ±45°, Yaw: ±40° |
| Print Contrast:: | PCS 30% EAN13 @10mil |
| Alert Operation: | LED light indicator and beeper |
| Environmental | |
| Operating Temperature: | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature: | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity : | 20% ~ 95% (non-condensing) |
| Storage Humidity : | 5% to 95% (non-condensing) |
| Shock Resistance: | Withstanding 1.5m freefall drops |
| Regulatory | FCC, CE RoHS |
System Requirements:
- Windows®2000 / XP / Vista / 7 / 8 / 10
- Mac® OS X
- Interface: USB

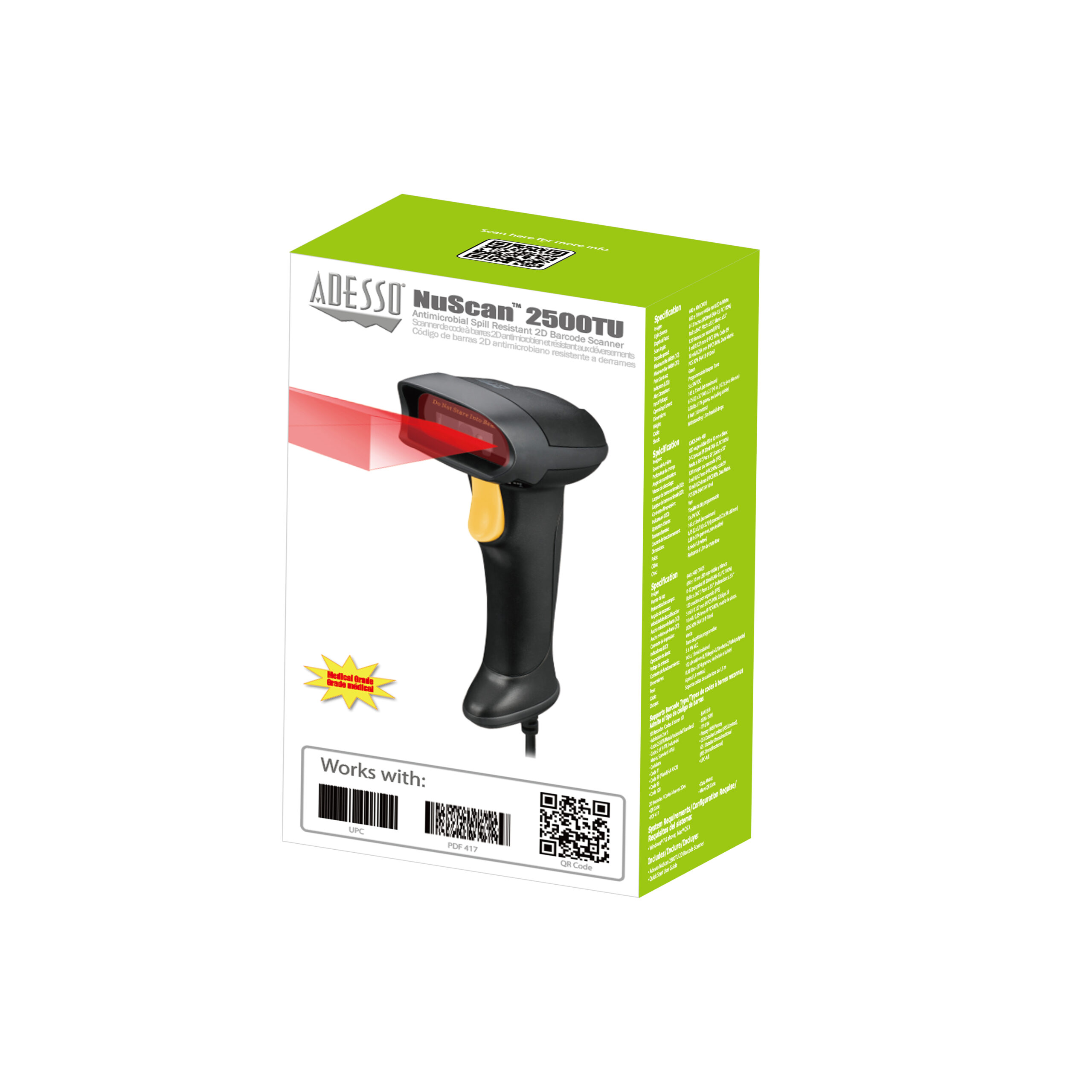

Includes:
- Adesso NuScan 2500TU – Spill Resistant Antimicrobial 2D Barcode Scanner
- Quick Start Guide
Shipping Information
|
Item
|
UPC Code
|
Package Dimensions
|
Package Weight
|
Qty/Carton
|
Country of Origin |
|
NuScan 2500TU |
783750009690 |
10.5″ x 7.2″ x 4.5″ |
2.0 lb |
10 |
China |
Specifications
| Connectivity | USB |
|---|---|
| Sensor | 1D, 2D |
| Features | Antimicrobial, Waterproof |
| Style | Handheld |
| Product Dimensions | 171 x 94 x 69 mm (6.73 x 3.7 x 2.72 in) |
| Product Weight | 454 g (1 lbs) |
Shipping Info
| Model Number | UPC | Package Dimensions | Package Weight | Carton Qty | Country Of Origin |
|---|---|---|---|---|---|
| NUSCAN 2500TU | 783750009690 | 216 x 114 x 89 mm (8.5 x 4.5 x 3.5 In.) | 454g (1 lbs) | 40 | China |
| Connectivity | USB |
|---|---|
| Sensor | 1D, 2D |
| Features | Antimicrobial, Waterproof |
| Style | Handheld |
| Product Dimensions | 171 x 94 x 69 mm (6.73 x 3.7 x 2.72 in) |
| Product Weight | 454 g (1 lbs) |
| Weight | 454 g |
|---|---|
| Dimensions | 171 × 94 × 69 mm |
