NUSCAN 4300B
$169.99

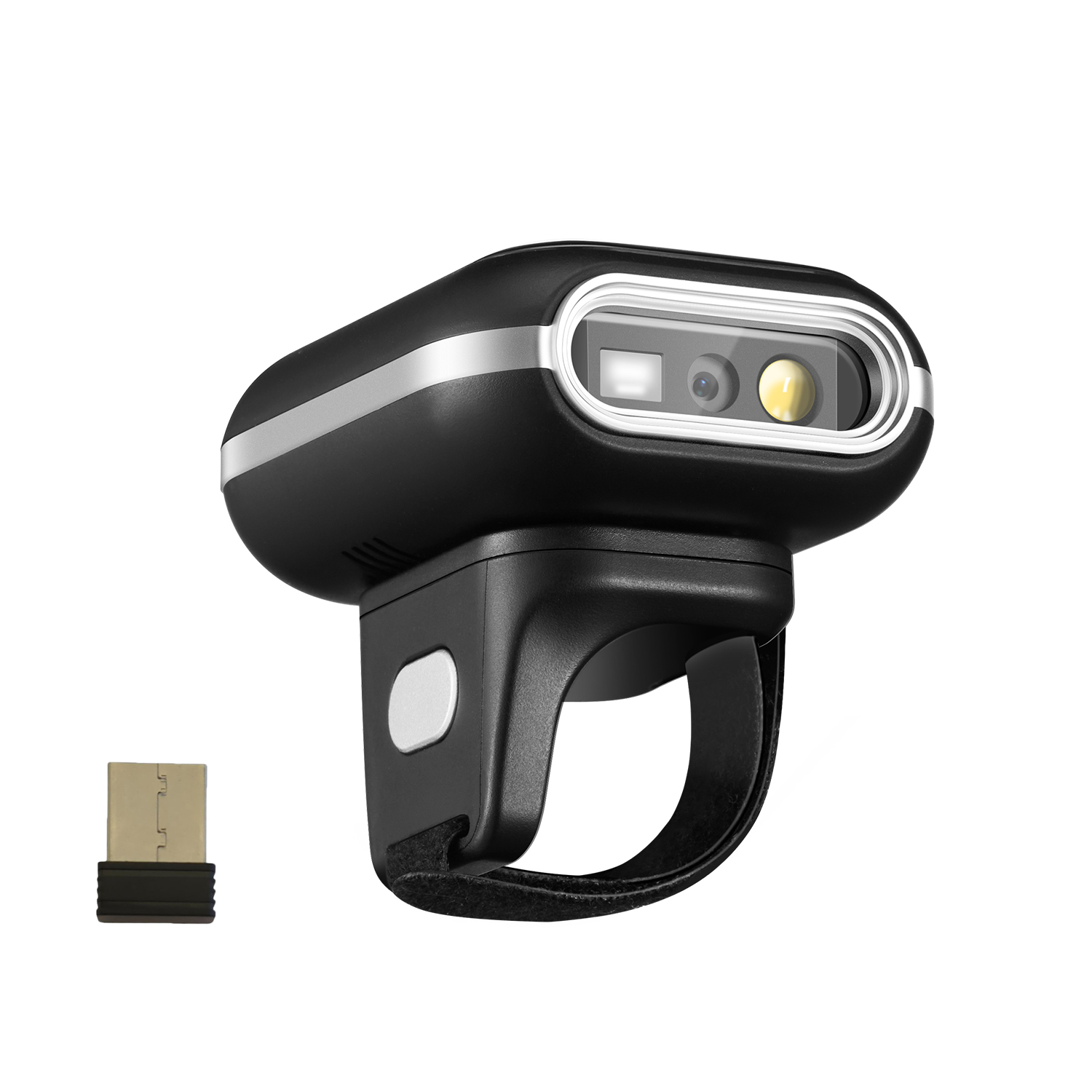

Bluetooth/2.4G 2D Ring Wearable Barcode Scanner
The Adesso Nuscan 4300B is a portable Bluetooth® 2D ring wearable barcode scanner, perfect for use in retail, warehouse, and distribution environments. Its compact ring design allows users to wear the scanner on their fingers, freeing up their hands for other tasks. With a 2D scanning engine, this scanner can quickly and accurately read all types of barcodes, including QR codes and Data Matrix codes. Its superior scanning performance and reliable data collection ensure that no barcode is missed. With drop protection and a long scanning range, this scanner is durable and can capture barcodes from a distance, reducing the need for manual scanning. Whether you need to scan barcodes on products, shelves, or inventory, the Adesso Nuscan 4300B is a versatile and efficient solution.
 |
||

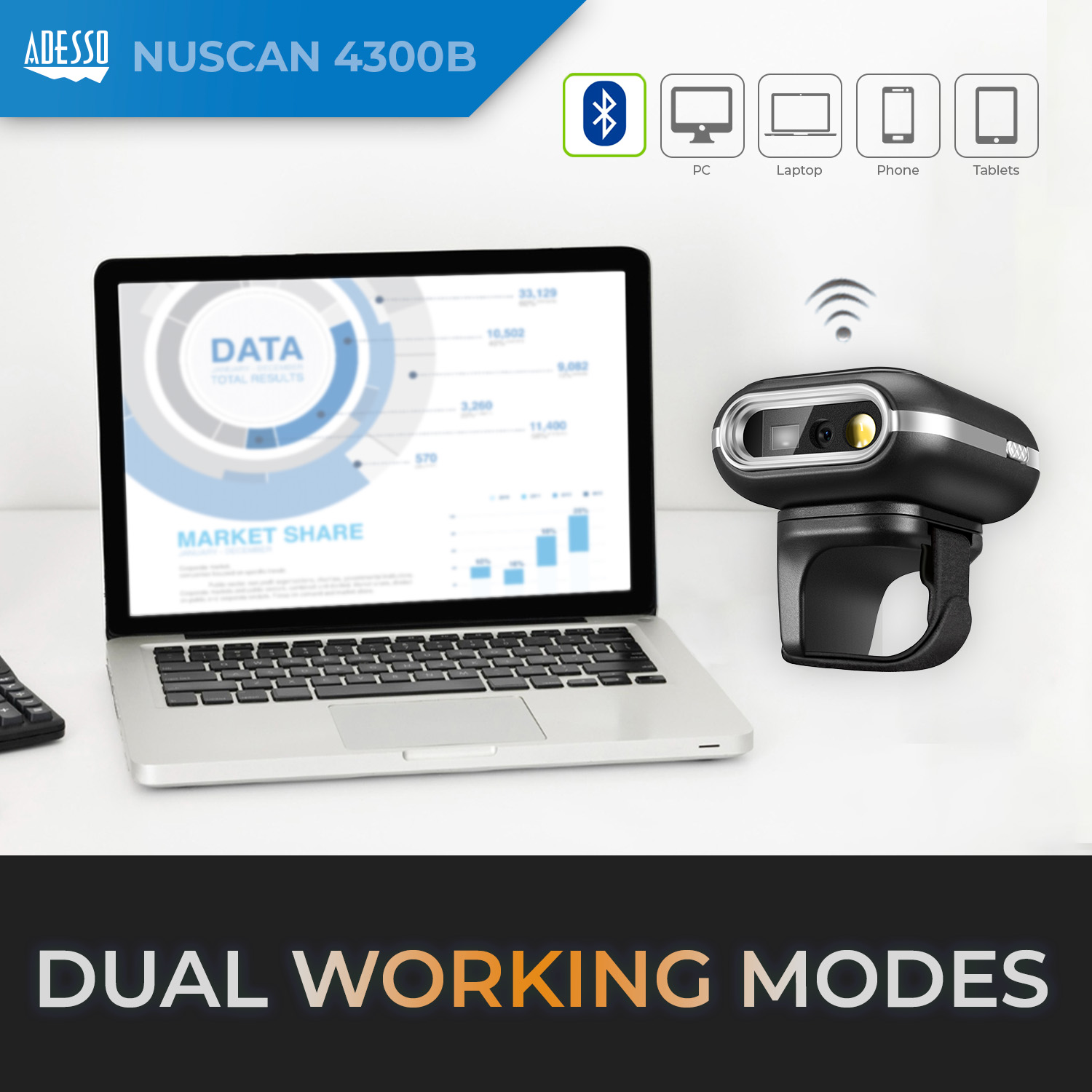

 Bluetooth® and 2.4ghz RF Wireless TechnologyConnect the scanner to your iOS/Android device or PC through bluetooth or 2.4ghz RF with ease and enjoy scanning barcodes wirelessly up to 50 feet away |

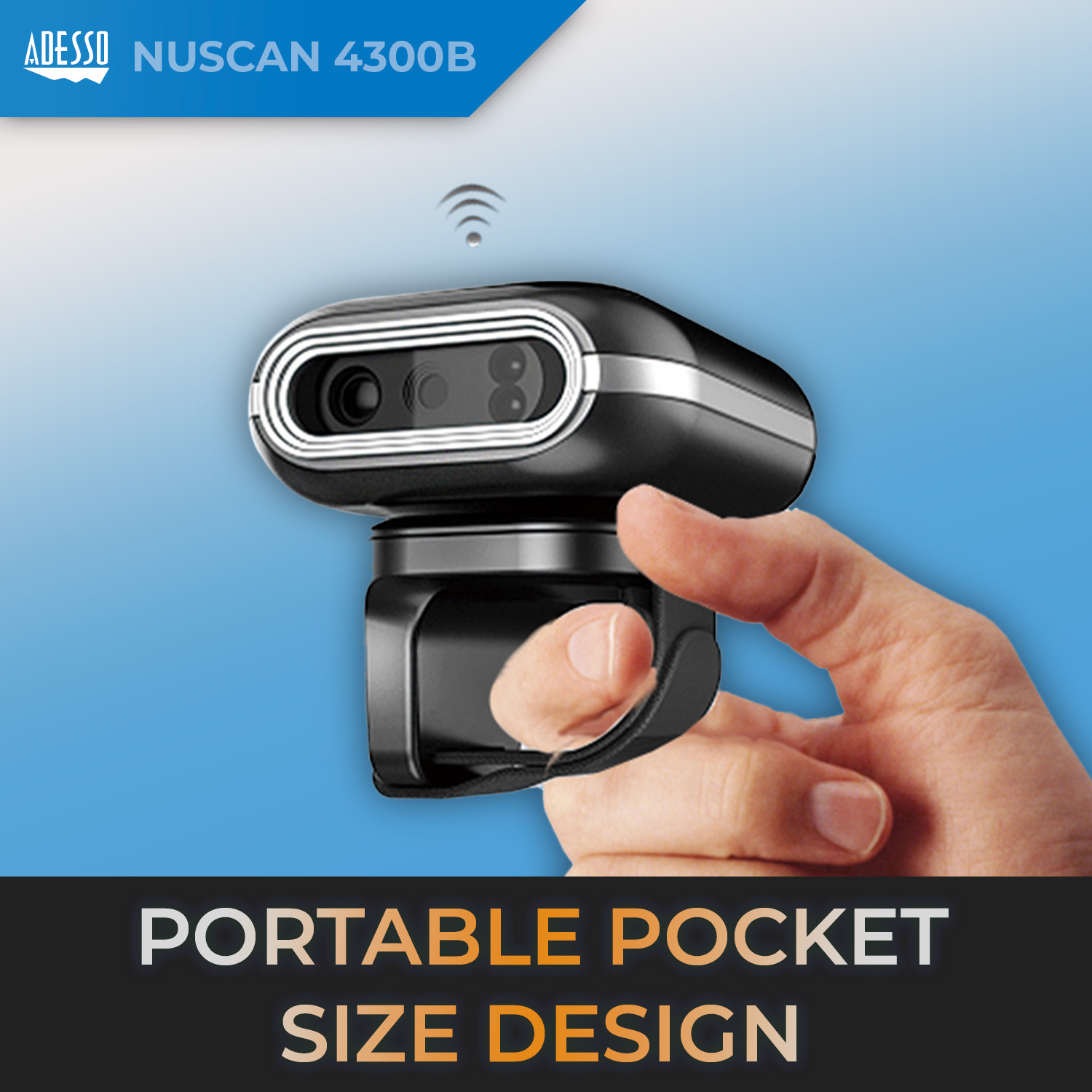

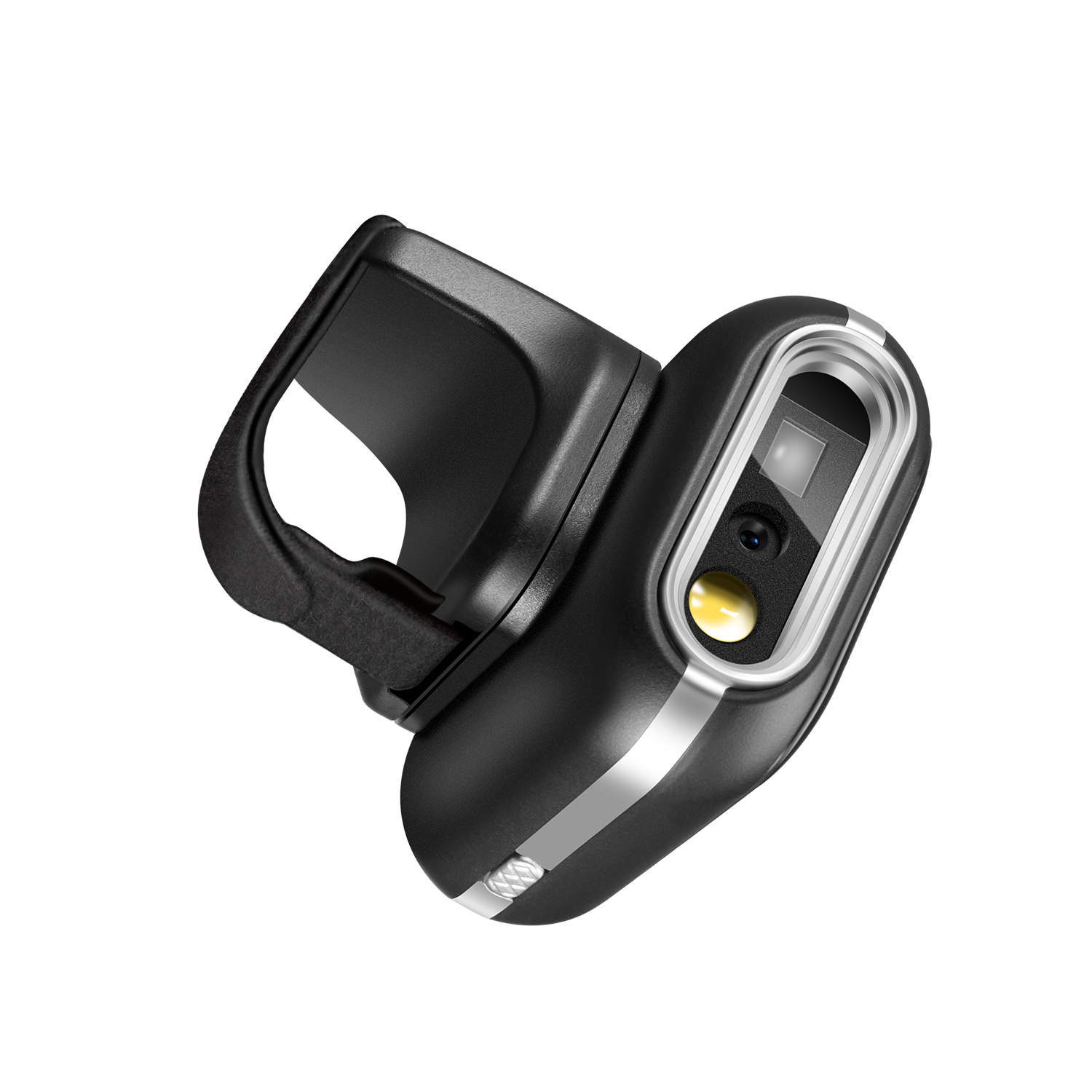

 Portable Ring DesignWeighing at less than 3 ounces, the NuScan 4300B is extremely light weight and portable, making it easily the perfect scanning solution wherever you go. |

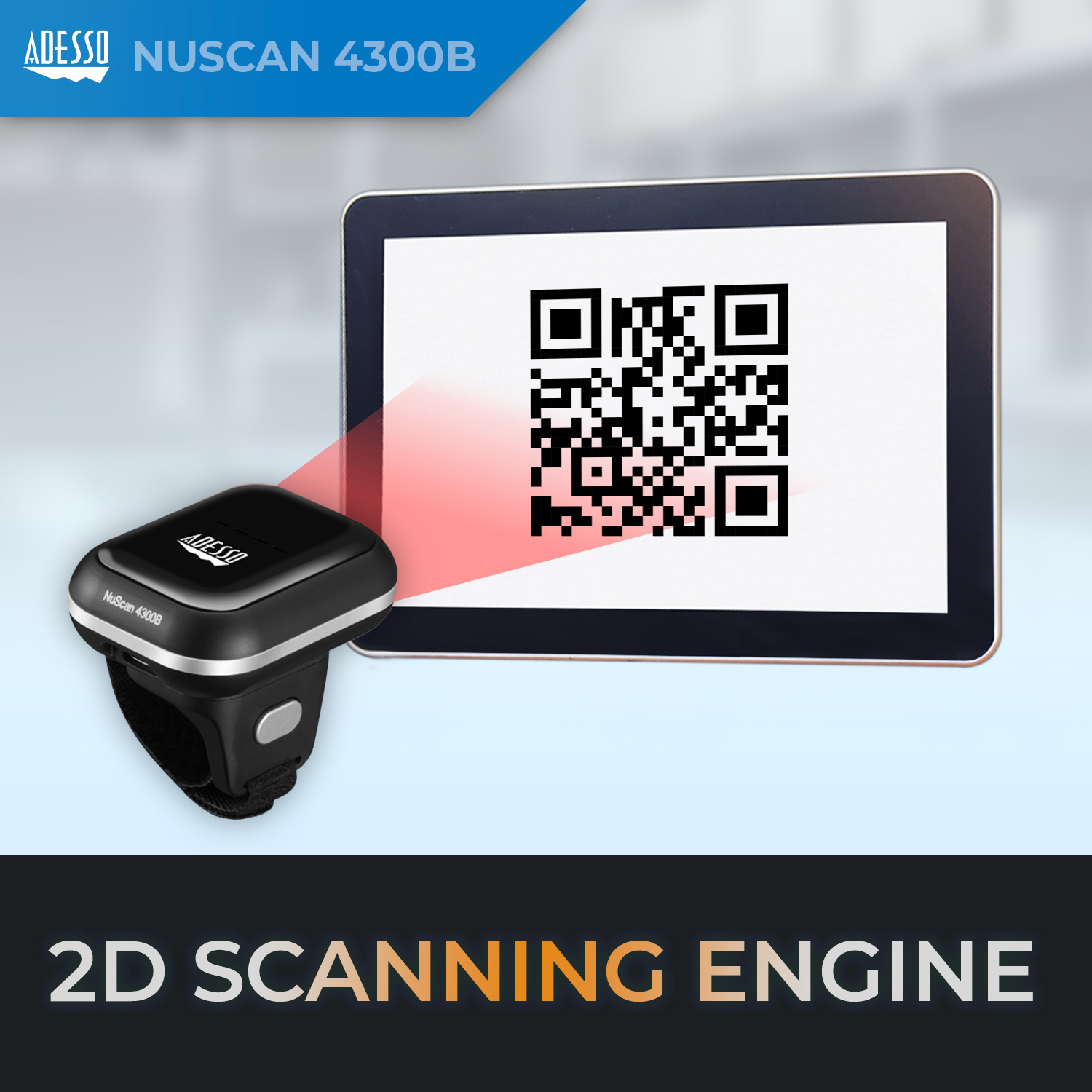

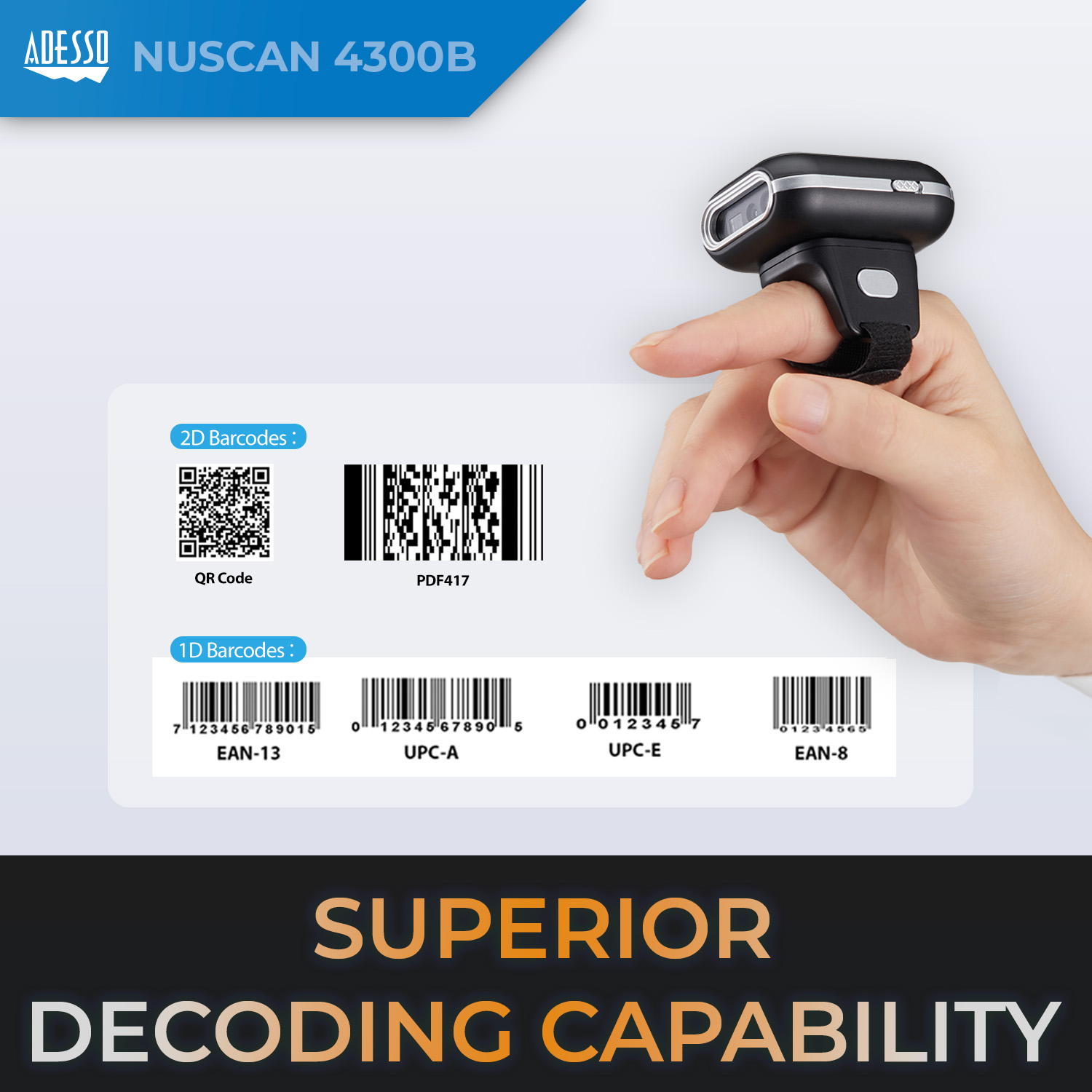

 2D Scanning Engine
The 2D scanning engine offers decoding capability for 2D barcodes like PDF417, Data Matrix, QR Code, MicroQR as well as common 1D barcodes. |
 Superior Scanning PerformanceEquipped with its CMOS sensor the device has a motion tolerance of 24 inches per second, offering fast and accurate scanning results. |

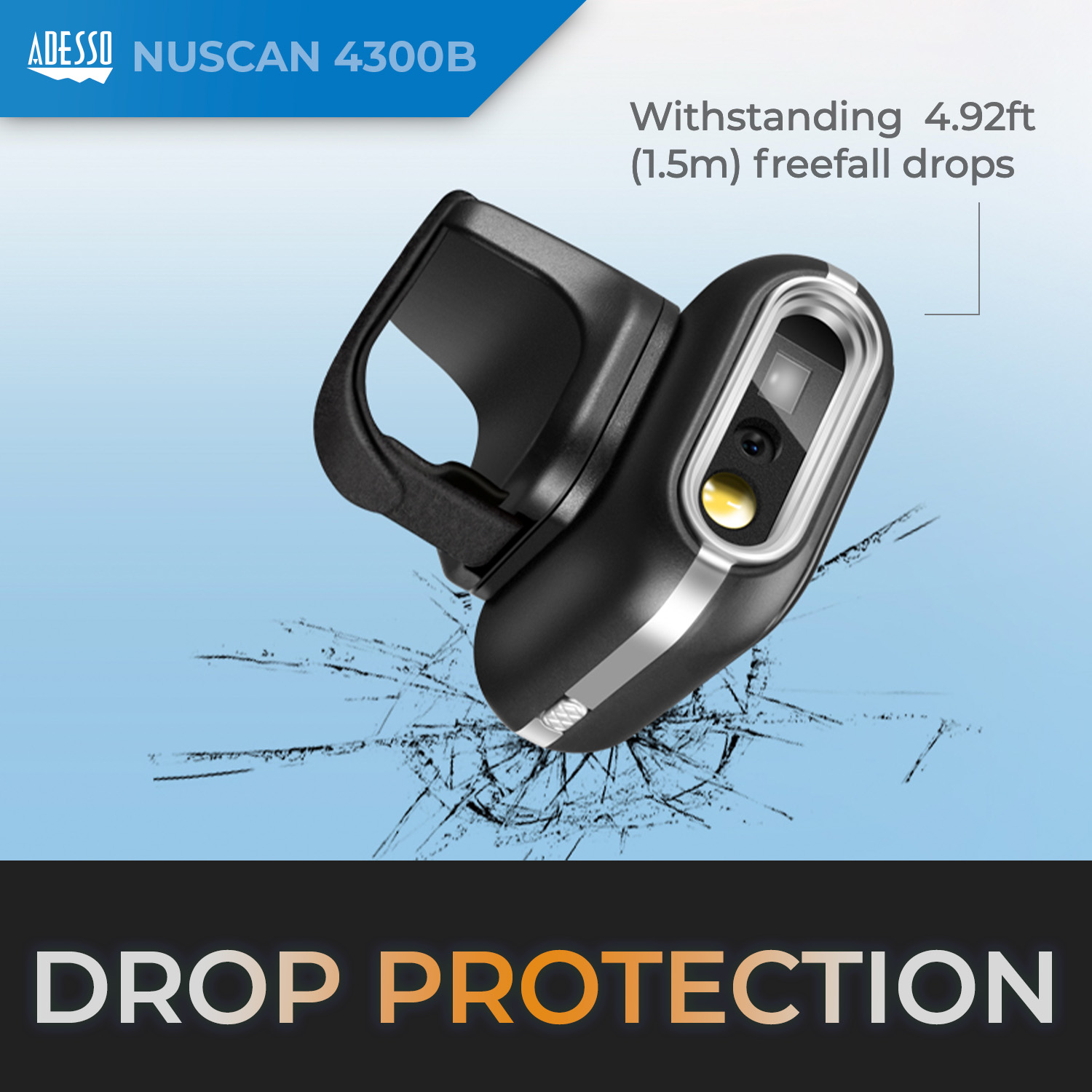

 Drop ProtectionWith its drop protection and rugged design, the NuScan 4300B can withstand accidental drops of up to 5 feet. |

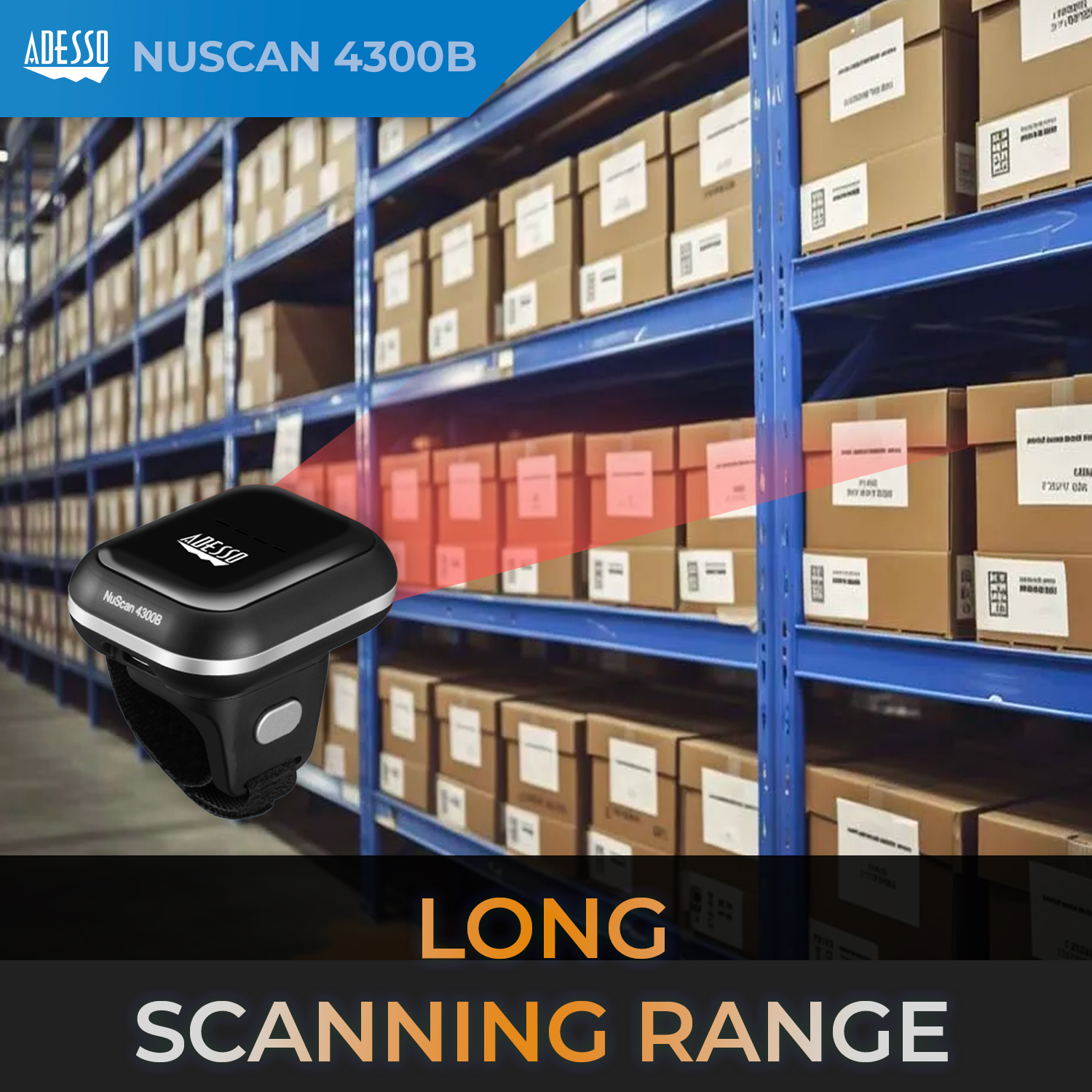

 Long Scanning Range
The 2D CMOS decoding engine is able to scan barcodes up to 12 inches in scan depth. |
Specifications
Wireless Range: 50 ft.
Imager: 1280 x 800 CMOS
Light Source: 650 ± 10 nm visible red LED & White
Depth of Field: 0-12 inches (@20mil EAN-13, PC 100%)
Scan Angle: Roll: ±360°, Pitch: ±70°, Yaw: ±70°
Motion Tolerance: 24 inches per second (IPS)
Minimum Bar Width (1D): 5 mil/0.127 mm @ PCS 90%, Code 39
Minimum Bar Width (2D): 10 mil/0.254 mm @ PCS 80%, Data Matrix.
Print Contrast: PCS 30% EAN13 @10mil
Indicators (LED): Red
Alert Operation: Programmable Beeper Tone
Input Voltage: Operating Current: 3.3 ± 5% VDC
EMC: FCC, CE, RoHS
Dimensions: 4.21 (L) x 1.89 (W) x 1.0 (H) in. (54 x 42 x 44 mm)
Weight: 2.96 oz. (44 grams, excluding cable)
Cable: 3′ 4″(1 meter)
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Storage Temperature: 40°C to 70°C (-40°F to 158°F)
Humidity: 5% to 95% (non-condensing)
Light Levels: Max 70,000 lux
1D: UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8 & Jan 13, ISBN/ISSN, Code 39, ASCII, Codabar, Code 128, Code 93, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
GS1 DataBar, Matrix 2 of 5.
2D: QR code, PDF417, MicroQR, Data Matrix, Matrix, Azetec.
System Requirements:
- Windows® 7 & above; Mac® OS X; iOS & Android
- : Bluetooth 5.0 or 2.4G Wireless (USB port required for charging cable)

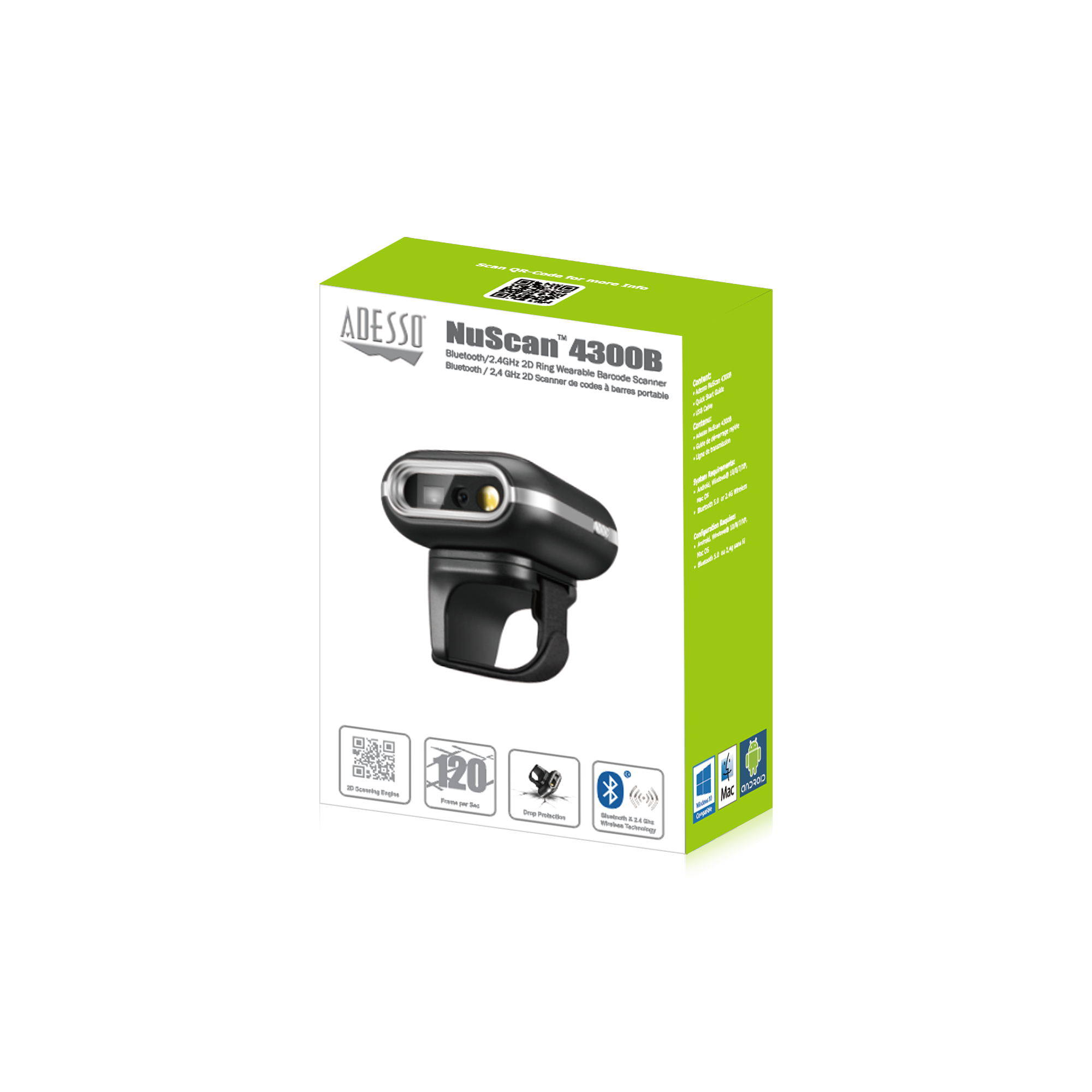

Includes:
-
- Adesso NuScan 4300b – Bluetooth 2D Ring Wearable Barcode Scanner
- Quick Start Guide
Shipping Information
| Item | UPC Code | Package Dimensions | Package Weight | Qty/Carton | Country of Origin |
| NuScan 4300B | 783750012171 | 5.3 x 4.5 x 1.9 Inch | 0.17 lb | 10/40 | China |
Specifications
| Connectivity | USB |
|---|---|
| Sensor | 1D, 2D |
| Style | Portable |
| Product Dimensions | 55 x 42 x 44 mm (2.17 x 1.65 x 1.73 in) |
| Product Weight | 77 g (0.17 lbs) |
Shipping Info
| Model Number | UPC | Package Dimensions | Package Weight | Carton Qty | Country Of Origin |
|---|---|---|---|---|---|
| NUSCAN 4300B | 783750012171 | 135 x 114 x 48 mm (5.3 x 4.5 x 1.9 In.) | 77g (0.2 lbs) | 40 | China |
| Connectivity | USB |
|---|---|
| Sensor | 1D, 2D |
| Style | Portable |
| Product Dimensions | 55 x 42 x 44 mm (2.17 x 1.65 x 1.73 in) |
| Product Weight | 77 g (0.17 lbs) |
| Weight | 77 g |
|---|---|
| Dimensions | 55 × 42 × 44 mm |
