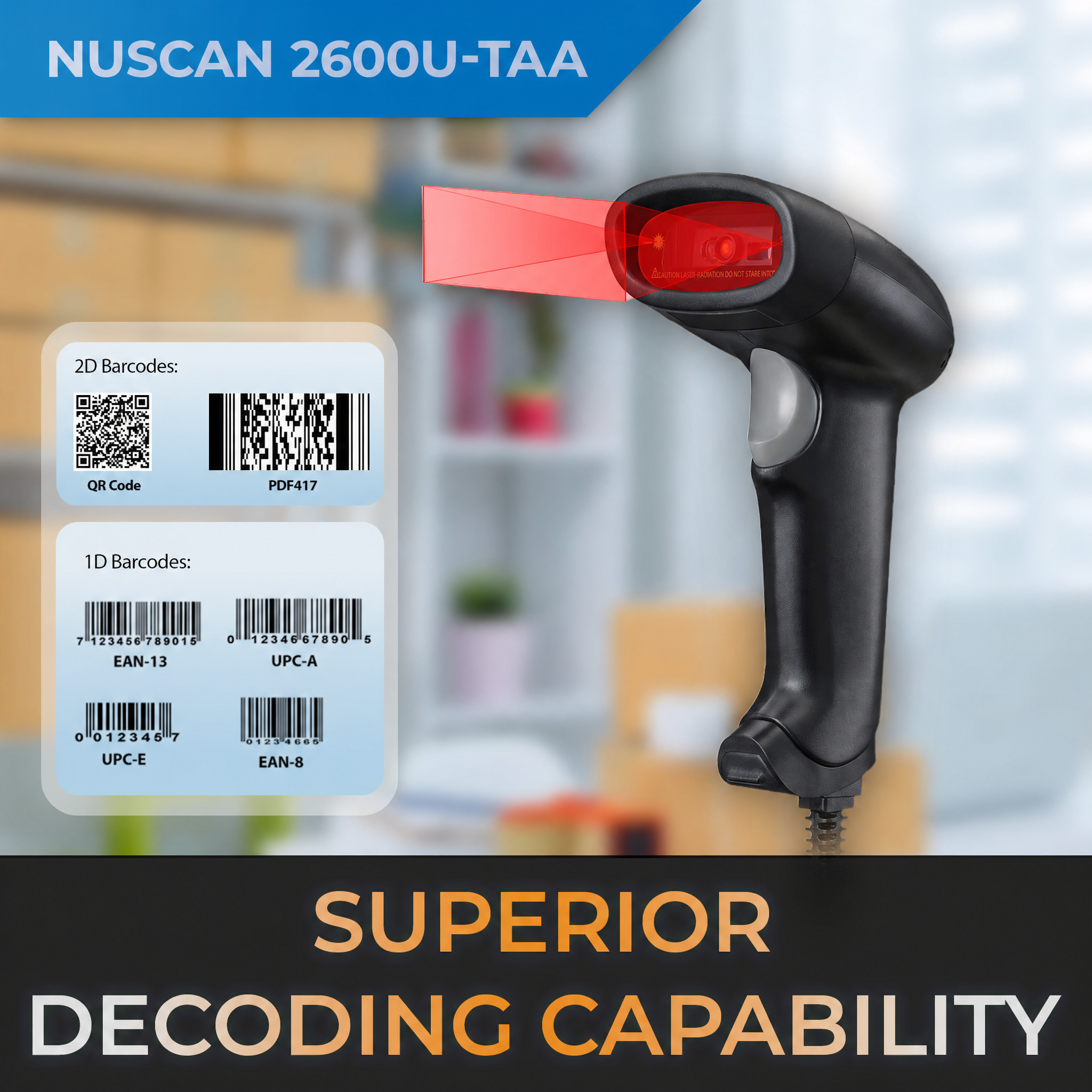

2D Scanning Engine
The 2D scanning engine offers decoding capability for 2D barcodes like PDF417, Data Matrix, QR Code, MicroQR as well as common 1D barcodes. |
Superior Scanning Performance
Equipped with a 640*480 CMOS sensor the scanner has a motion tolerance of 5 inches per second, offering fast and accurate scanning results. |
Long Scanning Range
The scanner is able to scan barcodes up to a distance of 10 inches. |
Drop Protection
The drop-protection design prevents damage due to accidental drops of less than 1.5 meters. |
|
|
|
|
|
|
|
|
|
|
|
|
Specifications
| Mechanical: |
|
| Dimensions (L x W x H): |
5.4 x 2.9 x 4.15″ (167 x 73.5 x 105.4mm) |
| Weight |
0.43 lbs (195g) |
| Cable Length: |
6 Ft (1.8meters) |
|
|
| Electrical: |
|
| Power Input voltage: |
5 ± 5% VDC |
| Working Current: |
120mA |
| Light Source: |
White LED and 640nm visible Red LED |
|
|
| Performance: |
|
| Interface: |
USB |
| Sensor: |
640*480 CMOS Sensor |
|
|
| Minimum Resolution Supported (2D): |
5 mil |
| Depth of Field: |
0-10 inches (@13mil UPC-A, PC 100%) |
| Scan Rate: |
30 frames per second |
| Scan Angle |
Roll: ±30°, Pitch: ±60°, Skew: ±60° |
| Print Contrast:: |
>25% |
| Alert Operation: |
Blue LED indicator and beeper |
|
|
| Environmental |
|
| Operating Temperature: |
-20°C to 50°C (-4°F to 122°F) |
| Storage Temperature: |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity : |
20% ~ 95% (non-condensing) |
| Storage Humidity : |
5% to 95% (non-condensing) |
| Shock Resistance: |
Withstanding 1.5m freefall drops |
| Regulatory |
FCC, CE RoHS |
|
|
Supported Symbologies
1D: EAN-8, EAN-13, EAN-13 2 add-on, EAN-13 5add-on, ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 32
Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5
2D: PDF417, MicroPDF417, MicroQR, Data Matrix, QR, Aztec
System Requirements:
- Windows®2000 / XP / Vista / 7 / 8 / 10
- Mac® OS X
- Interface: USB
Includes:
- Adesso NuScan 2600U – Handheld 2D Barcode Scanner
- Quick Start Guide
Shipping Information
| Item |
UPC Code |
Package Dimensions |
Package Weight |
Qty/Carton |
Country of Origin |
| NuScan 2600U-TAA |
783750014939 |
7.5″ x 4.5″ x 3.3″ |
2.0 lb |
10/40 |
Taiwan |
