AUH-4051-TAA
$149.99
11-IN-1 USB-C Multiport Docking Station Supports Dual Display, HDMI Port, USB 3.2,PD, RJ45, 3.5mm Jack, Peripheral Lock Port (TAA Compliant)
The Adesso 11-IN-1 USB-C Multiport docking station is simple to use, just plug and
play! Expand your laptop and TYPE-C device’s connection port with this USB Type-C
multiport docking station. It has dual DP ports and 1 HDMI port for transmitting 4K
content to your external monitor and can also charge other devices. This USB Type-C
multi-port docking station has 4 USB 3.2 Gen 2 superspeed ports, 1 RJ45 Port, and 1
3.5mm Audio Jack, 1 Peripheral Lock Port.
 |
||
 |
|
|
| Fast and Stable Internet Connection Equipped with an RJ-45 port, you can seamlessly connect your laptop to become hard wired for a fast and stable connection to your internet up to 1000Mbps. |
Multiple Displays Extend your devices display by up to three monitors via two 4K/60Hz Display ports and one 4K/60Hz HDMI port, creating the perfect work environment. (Using all three simultaneously only supports 4K/30Hz) |
Up To 10Gbps Transfer Speeds Transfer files at fast speeds and stable connection via the USB 3.2 Gen 2 Type-C port, Also includes 4 USB 3.2 ports for a maximum of 10 Gbps transfer speed. |
 |
 |
 |
| Docking Station Lock The docking station lock Feature on the AUH-4051 provides enhanced security by locking the device in place, This prevents unauthorized removal or tampering, ensuring the safety of critical peripherals in shared or high-traffic environments. |
Mac Address Pass Through It supports the “MAC address pass-through” feature. This feature allows the MAC address of the native Ethernet network device on the system to be used for imaging, systems management, etc. To use the “MAC address pass through” feature, the setting must be enabled in the BIOS. The setting is located in BIOS -> Config -> Network |
Up to 100 W Power Delivery Charge your devices using the PD port achieving up to 100 W power delivery. (65W adapter included) |
|
||
| Specification | Details |
| Connection | 3x USB-A 3.2 (10 Gbps) |
| 1x USB-C 3.2 (10 Gbps) | |
| 1x PD (up to 100W) | |
| 2x DP (Single Output: 8k/30Hz, Dual Output: 4K/60Hz) | |
| 1x HDMI (4K/60Hz) | |
| 1x RJ45 (10/100/1000 Mbps) | |
| 1x 3.5MM Jack | |
| 1x Peripheral Lock Port (3×7 mm) | |
| Current Input | 1x Type-C port, PD 3.0, PD 5V-20V, max 5A, up to 100W |
| Video Max Refresh Rate | Dual Output 4K/60Hz, 1x HDMI (4K/60Hz) |
| Dimension | 4.2″ x 2.0″ x 0.63″ (67.5 x 51x 16mm) |
| Cable Length | 19.7 Inch (50 cm) |
System Requirements:
- Operating System: Windows® 2000 / XP / Vista / 7 / 8 / 10 / 11
- Connectivity Interface: USB-C port
Includes:
- Adesso AUH-4051-TAA

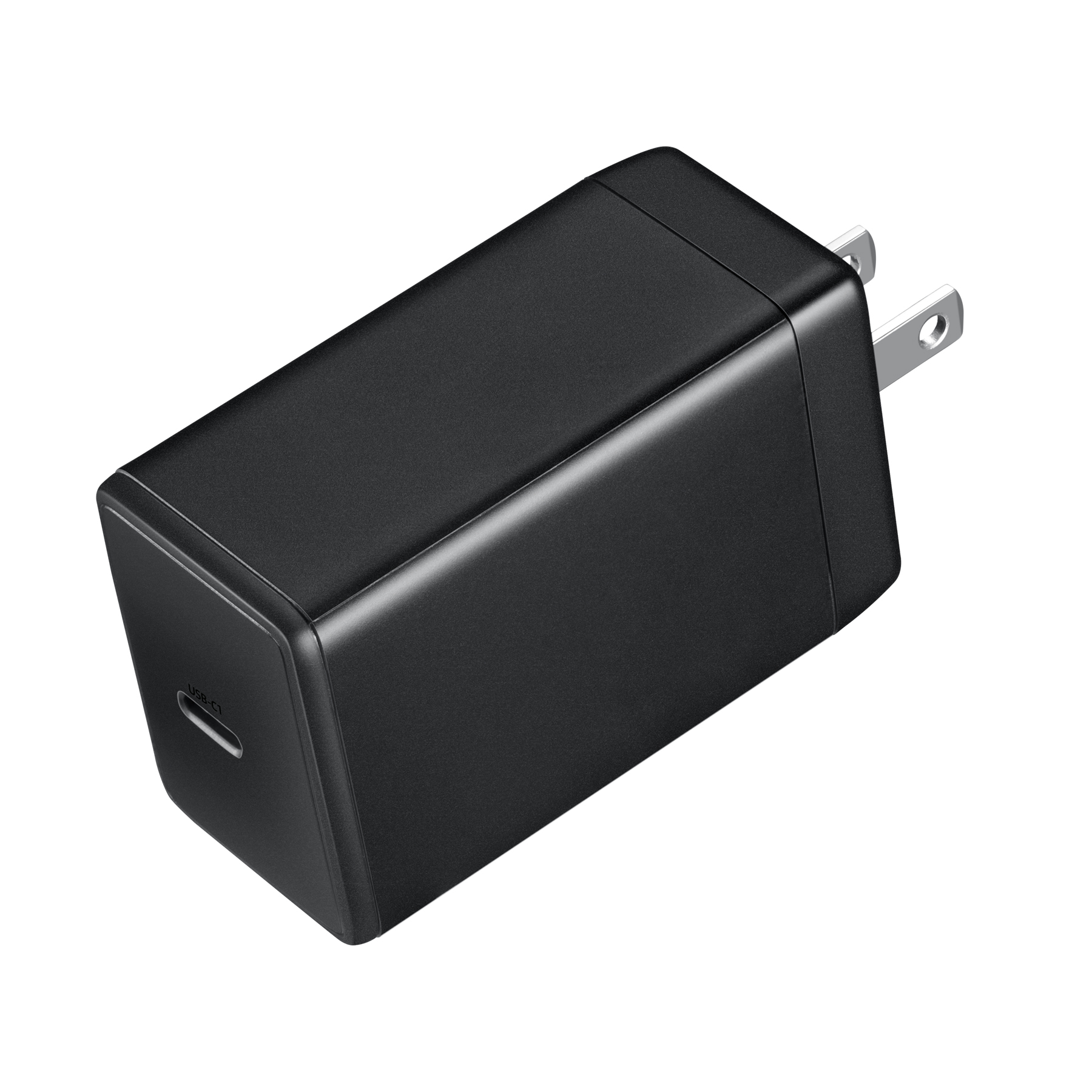

- 65 Watt Power adapter
- Quick Start Guide
Shipping Information
|
Item
|
Connection
|
UPC Code
|
Pkg. Dimension
|
Pkg. Wt.
|
Qty/Case
|
Country of Origin |
|
AUH-4051-TAA
|
USB C
|
783750013932
|
6.1″ x 6″ x 3″ | 1.2 lb | 10 | Taiwan |
Specifications
| Ports | Card Reader, Display Port, HDMI, Power Delivery, USB-C |
|---|---|
| Product Dimensions | 152 x 152 x 91 mm (5.98 x 5.98 x 3.58 in) |
| Product Weight | 1266 g (2.79 lbs) |
Shipping Info
| Model Number | UPC | Package Dimensions | Package Weight | Carton Qty | Country Of Origin |
|---|---|---|---|---|---|
| AUH-4051-TAA | 783750013932 | 152 x 152 x 91 mm (6.0 x 6.0 x 3.6 In.) | 1266g (2.8 lbs) | - | - |
| Ports | Card Reader, Display Port, HDMI, Power Delivery, USB-C |
|---|---|
| Product Dimensions | 152 x 152 x 91 mm (5.98 x 5.98 x 3.58 in) |
| Product Weight | 1266 g (2.79 lbs) |
| Weight | 1266 g |
|---|---|
| Dimensions | 152 × 152 × 91 mm |
